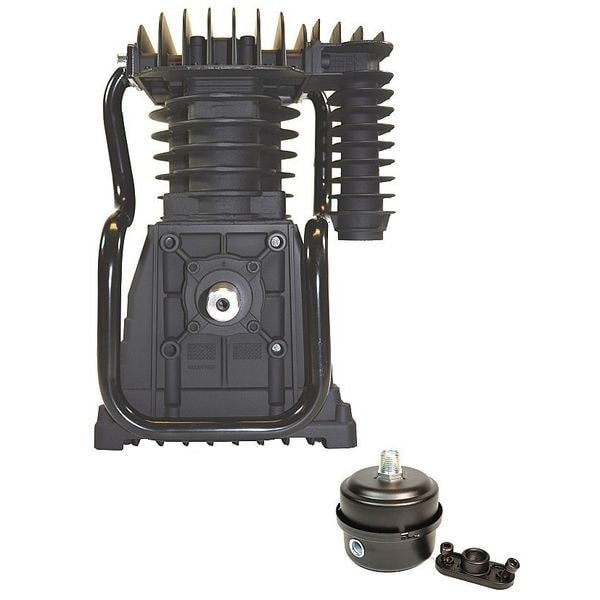

Air Compressor Pump, 5, Two Stage Stage, 46.08 fl oz Oil Capacity, 2 Cylinder
Mfr # 1312101035
Zoro # G2195807
product price:Â
$
1,164.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
HP
5
Number of Stages
Two Stage
Lubrication Type
Splash Lubricated
Number of Cylinders
2
Max. Pressure
175 PSI
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1312101035
- Zoro #
- G2195807
- UPC #
- 738435744663
- Country of Origin
- United States
Dimensions
- Flywheel Dia.
- 13 3/4 in
- Overall Height
- 14.56 in
- Bore Dia.
- 3 47/64 in
- Overall Depth
- 12.4 in
- Stroke Length
- 2 in
- Overall Width
- 13.78 in
- Flywheel Diameter
- 13 3/4 in
- Bore Diameter
- 3.73 in
- Outlet Size
- 0.5 in
Description
Air Compressor Pump, Lubrication Type Splash Lubricated, Number of Stages 2, Maximum Output Power 5 hp, Free Air Flow Rate @ Maximum Pressure 15.0 cfm @ 175 psi, Number of Cylinders 2, Maximum Operating Pressure 175 psi, Flywheel Diameter 13 3/4 in, Flywheel Included Yes, Pump Speed 1,400 RPM, Construction Aluminum, Groove Section A, Number of Grooves 1, Valve Type Reed, Valve Material Stainless Steel, Rotation CCW, Stroke Length 2 in
