  9. Air Cutoff ToolGen Duty22k rpm12.5cfm
Shop All Air Cut-Off Tools
Chicago Pneumatic

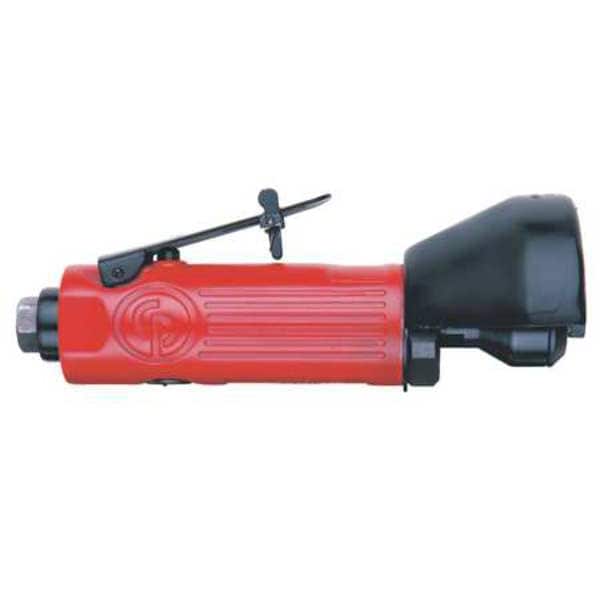

Air Cutoff ToolGen Duty22k rpm12.5cfm

product price: $84.79
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Duty General
  • Free Speed 22,000 RPM
  • Wheel Dia. 2 7/8 in
  • CFM @ Full Load 12.5
  • HP 0.5 hp
See all product information

Product Information

Dimensions

Wheel Dia. 2 7/8 in
Overall Length 7 1/4 in
Spindle Dia. 3/8-24
Air Inlet Connection Size 1/4 in
Wheel Diameter 2 7/8 in
Min. Hose Size 3/8 in
Spindle Diameter 3/8 in
Arbor Hole Size 3/8 in

Details

Item Cut-Off Tool
Duty General
Free Speed 22,000 RPM
CFM @ Full Load 12.5
HP 0.5 hp
Includes Safety Guard
Air Inlet 1/4 in NPT Female
Housing Material Aluminum
Variable Speed Yes
Min. Hose 3/8 in
Required Pressure 90 psi
Arbor Hole 3/8 in
Guard Material Steel
Speed Control Lever
Exhaust Rear
Handle Material Aluminum
Average CFM @ 15 Second Run Time 3.1
Max. Wheel Thickness 1/16 in
Lever Type Safety Lock Off
Standards ISO-28927-8
Features High Speed Cutter
Lock-Off Switch Yes
Kit Contents (1) Bare Tool
Max. Speed 22,000 RPM
Air Consumption 12 cfm
Air Pressure 90 psi
Maximum Wheel Thickness 1/16 in
Exhaust Location Rear
Duty Rating Medium Duty
Horsepower 0.5 hp
Power Source Air Powered
Reach Standard Reach
Tool Weight 1.8 lb
Vibration Level 4 m/sq sec
Cut-Off Wheel Orientation Perpendicular
Air Inlet Type NPT
Air Inlet Gender Female

Description

Cut-Off Tool, Wheel Diameter 2 7/8 in, Duty Rating Medium Duty, Horsepower 0.5 hp, Max. Speed 22,000 RPM, Air Inlet 1/4 in NPT Female, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Air Inlet Type NPT, Exhaust Location Rear, Cut-Off Wheel Orientation Perpendicular, Reach Standard Reach, Kit Contents (1) Bare Tool, Includes Safety Guard, Speed Control Lever, Lever Type Safety Lock Off, Maximum Wheel Thickness 1/16 in, Arbor Hole Size 3/8 in, Spindle Diameter 3/8 in
