Shop CHICAGO PNEUMATIC

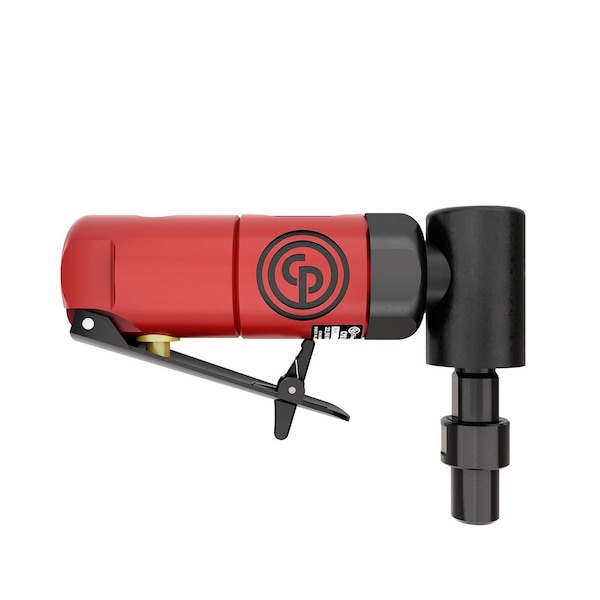

Air Die Grinder, Compact, Right Angle, 1/4" Collet, Medium-Duty, 22,500 RPM, 90 psi

  • Mfr # CP875

  • Zoro # G3712965

original price:  $79.59 , new price: $67.65 , 15 percent off
new price:
$
67.65
/ea

Key Features

Overall Length
4 7/8 in
Air Inlet
1/4 in NPT Female
Horsepower
0.3 hp
Free Speed
22,500 RPM
Max. Speed
22,500 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP875
Zoro #
G3712965
UPC #
015451394882
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
4 7/8 in
Min. Hose Size
0.38 in
Right Angle Length
3 in
Collet Size
1/4 in
Air Inlet Connection Size
1/4 in
Spindle Thread Size
0.25 in
Width (in)
3.94 in
Hose Size - Minimum
3/8 in
Wire Rope Length
4 7/8 in
Length
4 7/8 in

Details

Item
Die Grinder
Air Inlet
1/4 in NPT Female
Horsepower
0.3 hp
Free Speed
22,500 RPM
Max. Speed
22,500 RPM
Grinder Type
Right Angle
Includes
Air Angle Die Grinder; Wrench Spanner
Duty
Medium Duty
Handle Material
Aluminum
CFM @ Full Load
22 cfm
Bearing Type
Ball
Characteristics
Compact and Flexible
Grinder Orientation
90 Degree Angle
Average CFM @ 15 Second Run Time
5.5
Variable Speed
Yes
Collet
1/4 in
Throttle
Safety Lever
Tool Weight
1 lb
Application
General Maintenance Application
Standards
ISO-28927-12
Features
Compact and Lightweight
Switch Location
Bottom
Air Pressure
90 psi
Vibration Level
1.9 m/sq sec
Tool Style
Right Angle
Minimum Speed
22,500 RPM
Power Source
Air Powered
Air Consumption
22 cfm
Accessory Free Tool Change
No
Air Inlet Type
NPT
Exhaust Location
Rear
Air Inlet Gender
Female
Sound Power (dB(A))
112.3 dB
Handle Type
Straight
Angle Type
90°
Starting System
Safety Lever
Air Consumption at Free Speed (cfm)
22 cfm
Color
Red, Black
Housing Material
Aluminum, Composite Over-sleeve
Frequency of Use
Maintenance to Light Production
Tool Life
Long Lasting
Speed - Minimum
22,500 RPM
Speed - Maximum
22,500 RPM
Power Source - TS Only
Air Powered
Power Source - old
Air Powered

Description

The CHICAGO PNEUMATIC - CP875 is a 1/4-Inch Mini Angle Air Die Grinder, designed for efficient grinding, sanding, honing, polishing or machining tasks. This compact and lightweight tool operates at a free speed of 22,500 RPM with a power of 0.3 hp (220 W), making it ideal for general maintenance in limited spaces.
Key Features:

  • Air Inlet: The grinder features a standard 1/4 in NPT Female inlet compatible with most compressed air fittings.

  • Performance: With an impressive maximum speed of 22,500 RPM and horsepower of 0.3 hp, this tool ensures high-speed grinding applications.

  • CFM @ Full Load: Consumes only 22 cubic feet per minute (CFM) of air at full load capacity.

  • Bearing Type: Incorporates ball bearings to ensure smooth operation and reduced friction.

  • Hose & Collet Size Compatibility: Works optimally with minimum hose size of 3/8 in and collet size of 1/4 in.

  • Design & Style: Right-angle grinder design allows precision work even in tight spaces.

  • Exhaust Location: Front exhaust location effectively manages waste gases during operation.

  • Speed Control: Equipped with variable speed control feature for added versatility

  • Dimensions & Weight : Compact design measuring just under five inches (47⁄8 in) long and weighing only one pound for user comfort during prolonged use.
    This product adheres to ISO standards (ISO -28927 -12), ensuring its quality and performance reliability. Please note that the kit includes wrenches but does not support accessory-free tool change functionality.
