Shop CHICAGO PNEUMATIC

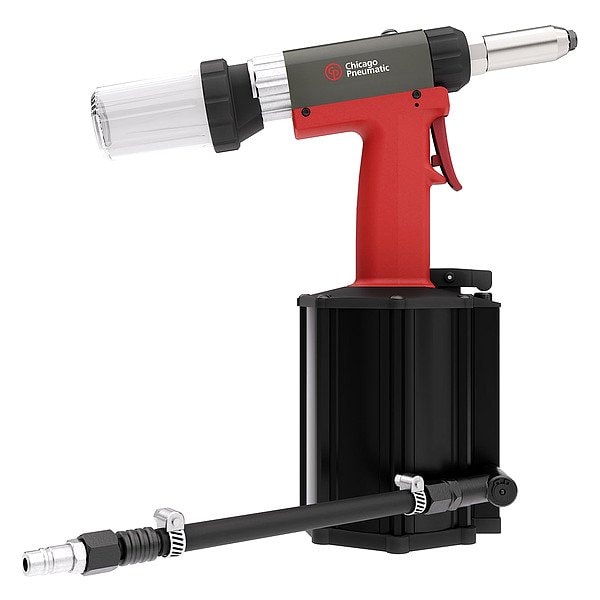

Air Riveter, 1/4 in, NPT, Aluminum

  • Mfr # CP9887

  • Zoro # G410607452

original price:  $913.99 , new price: $776.99 , 14 percent off
new price:  $776.99
/ea
Free Shipping & Returns

Key Features

Overall Length
12 13/16 in
Tool Weight
5.51 lb
Stroke Length
27 mm
Pulling Force
21,000 N
For Rivet Nut Thread Size
M12, M3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP9887
Zoro #
G410607452
UPC #
015451796938
Country of Origin
China

Dimensions

Overall Length
12 13/16 in
Stroke Length
27 mm
For Rivet Nut Thread Size
M12, M3
Min. Hose Size
10 mm
For Helical Insert Size
N
Overall Width
13 3/4 in
Blind Rivet Dia. - Stainless Steel
4 4/5 mm, 5 4/5 mm, 6 2/5 mm
Blind Rivet Dia. - Steel
4 4/5 mm, 5 4/5 mm, 6 4/5 mm, 7 4/5 mm
Blind Rivet Dia. - Aluminum
3 1/5 mm, 4 mm, 4 4/5 mm
Overall Height
5 1/8 in
Hose Size - Minimum
10 mm
Blind Rivet Diameter - Steel
4.8 mm, 5.8 mm, 6.8 mm, 7.8 mm
Blind Rivet Diameter
7.8 mm
Blind Rivet Diameter - Stainless Steel
4.8 mm, 5.8 mm, 6.4 mm
Blind Rivet Diameter - Aluminum
3.2 mm, 4 mm, 4.8 mm
Air Inlet Connection Size
1/4 in

Details

Item
Air Riveter
Tool Weight
5.51 lb
Pulling Force
21,000 N
Includes
(1) Anvil for M3 puller, (1) Anvil for M4 puller, (1) Anvil for M5 puller, (1) Anvil for M6 puller, (1) Nosepiece 4.8mm flat, (1) Nosepiece 4.8mm protrude, (1) Nosepiece 4.8mm recessed, (1) Nosepiece 5.2mm, (1) Nosepiece 6.2mm, (1) Nosepiece 6.4mm, (1) Nosepiece 6.4mm flat, (1) Nosepiece 6.4mm mark, (1) Nosepiece 7.8mm
Air Inlet
1/4 in NPT
Features
Comfortable and Safe with Low Vibration and Kickback, Flexible Air Connection with 360 degree Rotation Option, Powerful with High Setting Forces
Includes Mandrel Collection
Yes
Power Source
Air-Powered
Standards
CE, EN ISO
Exhaust Location
Side
Duty Rating
General Duty
Max. Air Pressure
91 psi
Housing Material
Aluminum
Min. Air Pressure
90 psi
Air Consumption
8.7 cfm
Air Pressure
90 psi
Rivet Type
Blind Rivet
Air Inlet Type
NPT
Flow per Stroke
8.7 cfm
Air Pressure - Minimum
90 psi
Air Pressure - Maximum
91 psi
Material
Steel
Power Source - TS Only
Air-Powered

Description

Riveter, Air Powered, Air Consumption 8.7 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 91 psi, Min. Air Pressure 90 psi, Min. Hose Size 10 mm, Exhaust Location Side, Duty Rating General Duty, Tool Brand Chicago Pneumatic, For Rivet Nut Thread Size M3 to M12, For Helical Insert Size N, Pulling Force 21,000 N, Rivet Type Blind, Blind Rivet Dia. - Aluminum 3 1/5 mm, 4 mm, 4 4/5 mm, Blind Rivet Dia. - Stainless Steel 4 4/5 mm, 5 4/5 mm, 6 2/5 mm
