Chicago Pneumatic

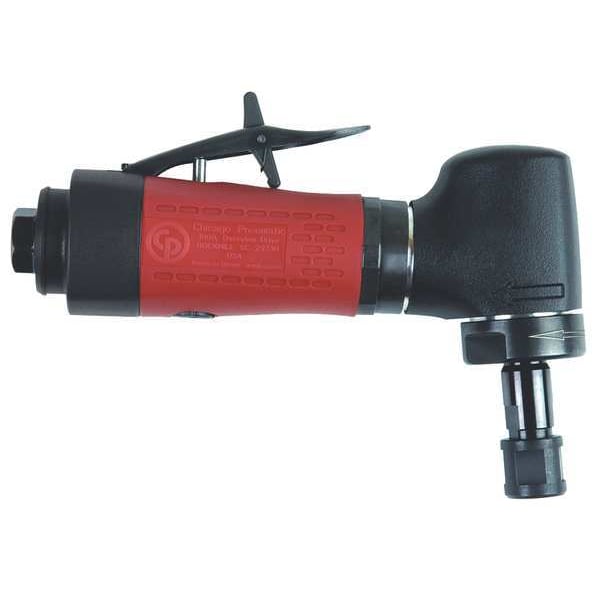

Angle Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Heavy Duty, 30,000 RPM, 0.4 hp

Hover or click to zoom Tap to zoom
Help us improve our product images
Key Features
  • Air Inlet: 1/4 in NPT Female
  • Item: Die Grinder
  • Collet: 1/4 in
  • Duty: Heavy Duty
  • Free Speed: 30,000 RPM
  • Grinder Type: Angle
  • Handle Material: Composite
  • HP: 0.4 hp
See full product details
$341.91
Ships from United States

Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Chicago Pneumatic #CP3030-330R Specifications

  • Air Inlet: 1/4 in NPT Female
  • Item: Die Grinder
  • Collet: 1/4 in
  • Duty: Heavy Duty
  • Free Speed: 30,000 RPM
  • Grinder Type: Angle
  • Handle Material: Composite
  • HP: 0.4 hp
  • Includes: Wrenches
  • Min. Hose Size: 3/8 in
  • Overall Length: 6 1/8 in
  • Required Pressure: 90 psi
  • Throttle: Safety Lever
  • Variable Speed: Yes
  • Right Angle Length: 2 1/2 in
  • Grinder Orientation: 7 Degree Angle
  • Average CFM @ 15 Second Run Time: 4.75
  • Bearing Type: Ball
  • Characteristics: Compact, Ergonomic, Gearless, Lightweight
  • CFM @ Full Load: 19.0
  • Exhaust: Rear
  • Tool Weight: 1.1 lb
  • Application: Ideal for Smoothing Rough Surfaces on the face of a Workpiece, Use in Metal Fabrication Applications With Either Carbide Burs or Mounted Grinding Stones
  • Standards: ISO-28927-12
  • Features: Easy maintenance, High precision, Lightweight and Ergonomic
  • Max. Speed: 30,000 RPM
  • Horsepower: 0.4 hp
  • Grip Style: Barrel Grip
  • Air Pressure: 90 psi
  • Switch Location: Top
  • Safety Stop Mechanisms: Not Applicable
  • Series: CP3030-R Series
  • Power Source: Air Powered
  • Safety Features: Safety Lever
  • Minimum Speed: 30,000 RPM
  • Collet Size: 1/4 in
  • Vibration Level: 2.5 m/sq sec
  • Air Inlet Connection Size: 1/4 in
  • Accessory Free Tool Change: No
  • Air Inlet Type: NPT
  • Switch Type: Safety Lever
  • Exhaust Location: Rear
  • Kit Contents: (1) Bare Tool
  • Tool Style: Right Angle
  • Air Consumption: 19 cfm
  • Air Inlet Gender: Female
  • Country of Origin (subject to change): Taiwan, Province of China

Description

Die Grinder, Duty Heavy Duty, Horsepower 0.4 hp, Collet Size 1/4 in, Grinder Orientation 7 Degree Angle, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 30,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Right Angle, Kit Contents (1) Bare Tool, Includes Wrenches, Grip Style Barrel Grip, Safety Features Safety Lever, Switch Location Top, Power Source Air Powered
