  9. Die Grinder, 1/4 in NPT Female Air Inlet, Heavy Duty

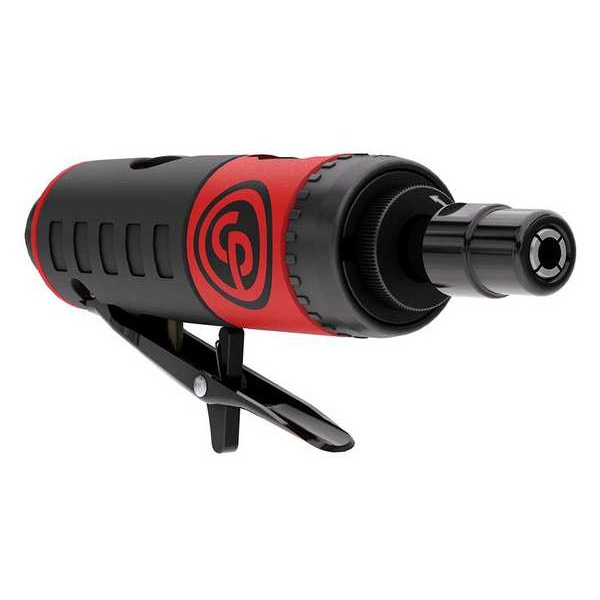

Chicago Pneumatic Die Grinder, 1/4 in NPT Female Air Inlet, Heavy Duty CP7405 - main

Die Grinder, 1/4 in NPT Female Air Inlet, Heavy Duty

  • Mfr # CP7405

  • Zoro # G301209697

product price: $137.99
/ea
Free Shipping & Returns

Key Features

Overall Length
6 7/8 in
Air Inlet
1/4 in NPT Female
Horsepower
0.3 hp
Max. Speed
28,000 RPM
Includes
(1) 1/4 in Collet, (1) 3mm Collet, (1) 6mm Collet, (1) Spanner
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CP7405
Zoro #
G301209697
UPC #
015451593599
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
6 7/8 in
Min. Hose Size
3/8 in
Maximum Brushed Wheel Diameter
1/4 in
Maximum Mounted Point Diameter
1/4 in
Air Inlet Connection Size
1/4 in
Collet Size
1/4 in
For Wheel Dia.
6 mm

Details

Item
Die Grinder
Air Inlet
1/4 in NPT Female
Horsepower
0.3 hp
Max. Speed
28,000 RPM
Includes
(1) 1/4 in Collet, (1) 3mm Collet, (1) 6mm Collet, (1) Spanner
Case Included
No
Kit Contents
(1) Bare Tool
Application
Cleaning Surfaces, Cutting, Deburring, Duburring Steel, Cast Iron or Aluminum, General Maintenance Application, Grinding, Removing Gaskets and General Surface Prep, Rust Removal, Sanding Applications, Weld Preparation
Tool Style
Straight
Lock-Off Switch
Yes
Handle Material
Composite with Rubber Grip
Duty
Heavy Duty
Exhaust Location
Rear
Anti-Vibration Technology
Yes
Air Pressure
90 psi
Air Inlet Type
NPT
Lock-On Switch
Yes
Bearing Type
Beveled
Power Source
Air Powered
Air Consumption
2.7 cfm
Dust Management
None
Grip Style
Barrel Grip
Accessory Free Tool Change
No
Safety Stop Mechanisms
Safety Start/Stop
Material Application
Ceramic, Glass, Steel, Wood
Safety Features
Safety Lever
Tool Weight
1.1 lb
Switch Type
Safety Lever
Anti-Kickback Clutch Type
None
Minimum Speed
28,000 RPM
Features
Ergonomic, Helical Bevel Gear Design, Low-Profile Throttle Lever for Increased Comfort, Speed Governed to Maximize Productivity, Efficiency and Life of Abrasives, Spindle Lock Allows Faster and Easier Accessory Changes
Grinder Orientation
Straight
Tether Style
Not Tether Capable
Switch Location
Bottom
Anti-Restart Technology
Yes
Brake Type
None
Air Inlet Gender
Female

Description

Die Grinder, Duty Heavy Duty, Horsepower 0.34 hp, Collet Size 1/4 in, Grinder Orientation Straight, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 28,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Straight, Kit Contents (1) Bare Tool, Includes (1) 1/4 in Collet, (1) 3mm Collet, (1) 6mm Collet, (1) Spanner, Case Included No, Grip Style Barrel Grip, Material Application Ceramic, Glass, Steel, Wood, Safety Stop Mechanisms Safety Start/Stop
