Chicago Pneumatic

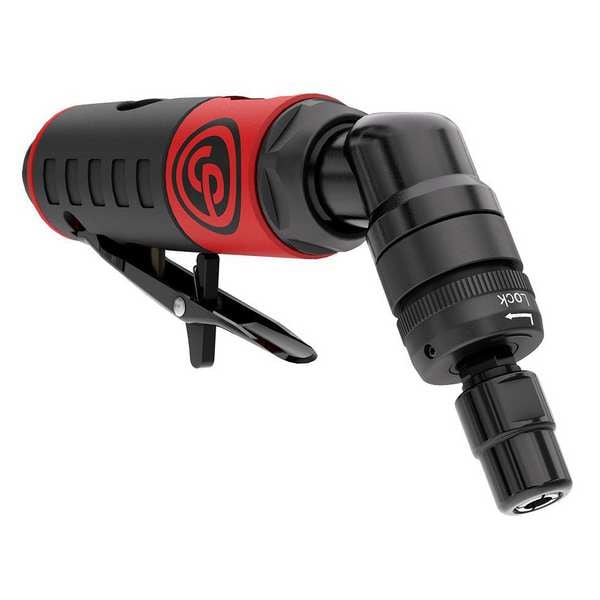

Die Grinder, 1/4 in NPT Female Air Inlet, Heavy Duty

product price: $142.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Air Inlet 1/4 in NPT Female
  • Duty Heavy Duty
  • Handle Material Composite with Rubber Grip
  • Includes (1) 1/4 in Collet, (1) 3mm Collet, (1) 6mm Collet, (1) Spanner
  • Min. Hose Size 3/8 in
See all product information

Product Information

Dimensions

Min. Hose Size 3/8 in
Overall Length 7 3/4 in
Maximum Mounted Point Diameter 1/4 in
Air Inlet Connection Size 1/4 in
For Wheel Dia. 6 mm
Maximum Brushed Wheel Diameter 1/4 in
Collet Size 1/4 in

Details

Air Inlet 1/4 in NPT Female
Item Die Grinder
Duty Heavy Duty
Handle Material Composite with Rubber Grip
Includes (1) 1/4 in Collet, (1) 3mm Collet, (1) 6mm Collet, (1) Spanner
Bearing Type Beveled
Air Consumption 2.7 cfm
Case Included No
Features Ergonomic, Helical Bevel Gear Design, Low-Profile Throttle Lever for Increased Comfort, Speed Governed to Maximize Productivity, Efficiency and Life of Abrasives, Spindle Lock Allows Faster and Easier Accessory Changes
Switch Type Safety Lever
Grinder Orientation 120 Degrees Angle
Exhaust Location Rear
Tool Style 120 Degrees Angle
Minimum Speed 23,000 RPM
Horsepower 0.3 hp
Power Source Air Powered
Kit Contents (1) Bare Tool
Air Inlet Type NPT
Application Cleaning Surfaces, Cutting, Deburring, Duburring Steel, Cast Iron or Aluminum, General Maintenance Application, Grinding, Removing Gaskets and General Surface Prep, Rust Removal, Sanding Applications, Weld Preparation
Max. Speed 23,000 RPM
Switch Location Bottom
Air Pressure 90 psi
Anti-Vibration Technology Yes
Tether Style Not Tether Capable
Grip Style Barrel Grip
Lock-Off Switch Yes
Lock-On Switch Yes
Air Inlet Gender Female
Accessory Free Tool Change No
Material Application Ceramic, Glass, Steel, Wood
Anti-Kickback Clutch Type None
Brake Type None
Anti-Restart Technology Yes
Tool Weight 1.4 lb
Safety Features Safety Lever
Dust Management None
Safety Stop Mechanisms Safety Start/Stop

Description

Die Grinder, Duty Heavy Duty, Horsepower 0.3 hp, Collet Size 1/4 in, Grinder Orientation 120 Degrees Angle, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 23,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style 120 Degrees Angle, Kit Contents (1) Bare Tool, Includes (1) 1/4 in Collet, (1) 3mm Collet, (1) 6mm Collet, (1) Spanner, Case Included No, Grip Style Barrel Grip, Material Application Ceramic, Glass, Steel, Wood
