Chicago Pneumatic

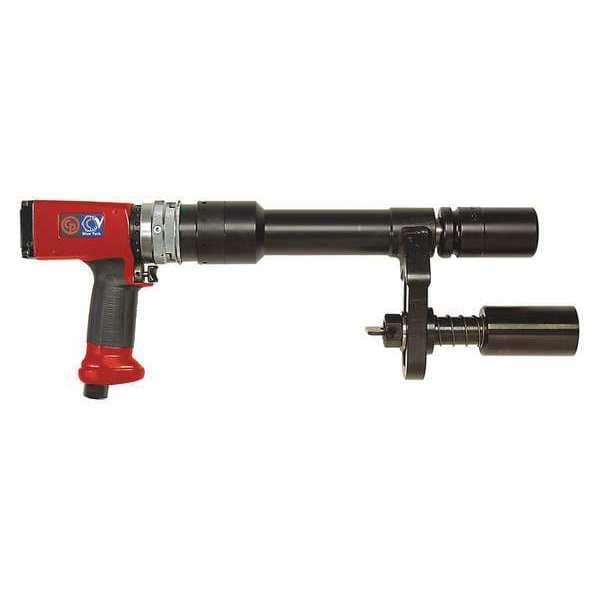

Nut Runner, Drive Size 1in, 18-7/64in L

product price: $9,667.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drive Size 1 in Square
  • Torque Range Soft Draw 250 to 650 ft.-lb.
  • Drive System Reverse
  • Free Speed 100 RPM
  • CFM @ Full Load 40.0
See all product information

Product Information

Dimensions

Drive Size 1 in Square
Head Width 2 1/4 in
Overall Length 18 in
Min. Hose Size 3/8 in
Head Height 1 1/8 in

Details

Torque Range Soft Draw 250 to 650 ft.-lb.
Drive System Reverse
Free Speed 100 RPM
CFM @ Full Load 40.0
Air Inlet 3/8 in NPT
Base to Top 7-1/2"
Required Pressure 90 PSI
Item Nutrunner
Throttle Trigger
Max. Air Pressure 102 psi
Air Pressure 90 psi
Torque Range 250 to 650 ft-lb
Housing Material Steel
Min. Air Pressure 44 psi
Retainer Type Through Hole
Duty Rating Industrial Duty
Power Source Air Powered
Includes Reaction Arm
Vibration Level Less Than 2.5 m/sq sec
Noise Level 79 dB
Handle Type Pistol Grip
Fastening Torque 660 ft-lb
Clutch Style Air Shut Off
Handle Material Aluminum
Reversible Yes
Exhaust Location Bottom
Standards 2006/42/EC (17/05/2006), EN ISO 11148-6:2012, ISO 28927-2
Side to Center 1 1/8 in
Throttle Type Variable-Speed Trigger
Tool Weight 19.4 lb
Air Consumption 40 cfm
Max. Torque 660 ft-lb
Reaction Bar Yes

Description

Nutrunner, Drive Size 1 in Square, Torque Range 250 to 650 ft-lb, Max. Torque 660 ft-lb, Free Speed 100 RPM, Air Pressure 90 psi, Air Consumption 40 cfm, Power Source Air Powered, Max. Air Pressure 102 psi, Min. Air Pressure 44 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Air Inlet 3/8 in NPT, Handle Type Pistol Grip, Handle Material Aluminum, Housing Material Steel, Overall Length 18 in, Fastening Torque 660 ft-lb, Reversible Yes, Tool Weight 19.4 lb
