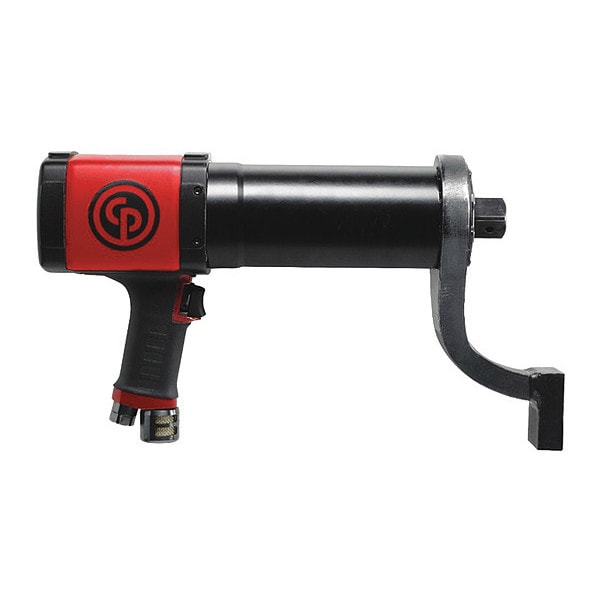

Pneumatic Nut Runner, Drive Size 1"

  • Mfr # CP6641

  • Zoro # G4447118


product price: $8,178.99
/ea
Free Shipping & Returns

Key Features

Drive Size
1 in Square
Torque Range Soft Draw
738 to 3100 ft.-lb.
Drive System
Reverse
Free Speed
10 RPM
CFM @ Full Load
64.8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP6641
Zoro #
G4447118
UPC #
015451775124
Country of Origin
Hungary

Dimensions

Drive Size
1 in Square
Head Width
3 7/8 in
Overall Length
14 1/4 in
Min. Hose Size
1/2 in
Head Height
1 7/8 in

Details

Torque Range Soft Draw
738 to 3100 ft.-lb.
Drive System
Reverse
Free Speed
10 RPM
CFM @ Full Load
64.8
Air Inlet
3/8 in NPT
Base to Top
8-11/32"
Throttle
Trigger
Item
Nutrunner
Required Pressure
20 to 90 psi
Handle Type
Pistol Grip
Throttle Type
Variable-Speed Trigger
Side to Center
1 5/8 in
Clutch Style
Air Shut Off
Power Source
Air Powered
Exhaust Location
Bottom
Handle Material
Aluminum
Min. Air Pressure
28 psi
Tool Weight
19.4 lb
Noise Level
90 dB
Max. Torque
3,100 ft-lb
Air Pressure
90 psi
Housing Material
Steel
Air Consumption
65 cfm
Vibration Level
Less Than 2.5 m/sq sec
Reversible
Yes
Standards
2006/42/EC (17/05/2006), EN ISO 11148-6:2013, ISO 15744
Fastening Torque
3,100 ft-lb
Reaction Bar
Yes
Torque Range
738 to 3,100 ft-lb
Includes
Reaction Arm
Max. Air Pressure
91 psi
Duty Rating
Industrial Duty
Retainer Type
Through Hole

Description

Nutrunner, Drive Size 1 in, Torque Range 738 to 3,100 ft-lb, Max. Torque 3,100 ft-lb, Free Speed 10 RPM, Air Pressure 90 psi, Air Consumption 65 cfm, Power Source Air-Powered, Max. Air Pressure 91 psi, Min. Air Pressure 28 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Air Inlet 3/8 in NPT, Handle Type Pistol-Grip, Handle Material Aluminum, Housing Material Steel, Overall Length 14 1/4 in, Fastening Torque 3,100 ft-lb, Reversible Yes, Tool Weight 19.4 lb
