Shop CHICAGO PNEUMATIC

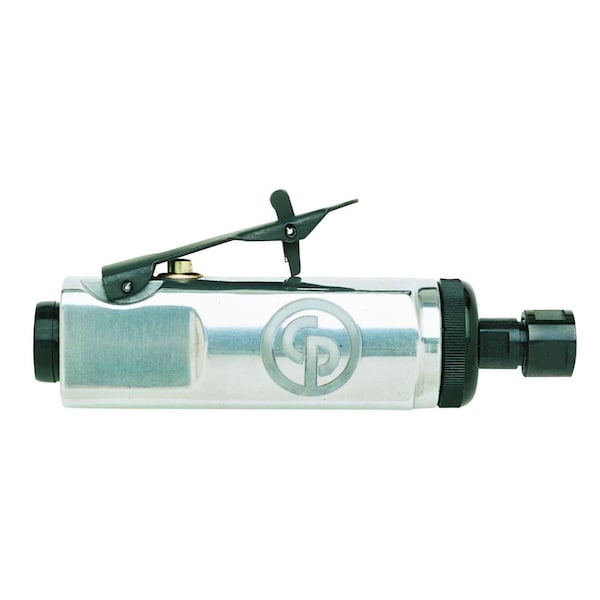

Straight Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Medium Duty, 24,000 RPM, 0.5 hp

  • Mfr # CP860

  • Zoro # G3657446

product price:
$
163.99
/ea
Free Shipping & Returns

Key Features

Overall Length
5 3/4 in
Air Inlet
1/4 in NPT Female
Horsepower
0.5 hp
Free Speed
24,000 RPM
Max. Speed
24,000 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP860
Zoro #
G3657446
UPC #
015451197049
Country of Origin
Japan

Dimensions

Overall Length
5 3/4 in
Min. Hose Size
0.38 in
Air Inlet Connection Size
1/4 in
Collet Size
1/4 in
Width (in)
4.13 in
Spindle Thread Size
0.25 in
Hose Size - Minimum
3/8 in
Wire Rope Length
5 3/4 in
Length
5 3/4 in

Details

Item
Die Grinder
Air Inlet
1/4 in NPT Female
Horsepower
0.5 hp
Free Speed
24,000 RPM
Max. Speed
24,000 RPM
Grinder Type
Straight
Includes
Wrenches
Grinder Orientation
Straight
Handle Material
Aluminum
Variable Speed
Yes
Characteristics
Durable
Collet
1/4 in
Bearing Type
Ball
Throttle
Lock Off Lever
Duty
Medium Duty
Average CFM @ 15 Second Run Time
10.5
CFM @ Full Load
21 cfm
Tool Weight
1.25 lb
Standards
ISO-28927-12
Features
Durable
Application
For Cleaning Tires, Grinding, Moldings, Polishing, Porting, Relieving Engines
Switch Type
Safety Lever
Air Consumption
21 cfm
Air Inlet Type
NPT
Air Pressure
90 psi
Safety Features
Lock-Off Lever
Minimum Speed
24,000 RPM
Tool Style
Straight
Exhaust Location
Rear
Lock-Off Switch
Yes
Power Source
Air Powered
Vibration Level
3.7 m/sq sec
Switch Location
Top
Accessory Free Tool Change
No
Kit Contents
(1) Bare Tool
Air Inlet Gender
Female
Handle Type
Straight
Sound Pressure (dB(A))
92.5 dB
Color
Silver, Black
Starting System
Safety Lever
Sound Power (dB(A))
103.5 dB
Angle Type
Straight
Air Consumption at Free Speed (cfm)
21 cfm
Housing Material
Aluminum, Composite Over-sleeve
Tool Life
Long Lasting
Robot Mounting Components Included
Tool Only
Speed - Maximum
24,000 RPM
Speed - Minimum
24,000 RPM
Frequency of Use
Maintenance to Light Production
Power Source - TS Only
Air Powered
Power Source - old
Air Powered

Description

Die Grinder, Duty Medium Duty, Horsepower 0.5 hp, Collet Size 1/4 in, Grinder Orientation Straight, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 24,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Straight, Kit Contents (1) Bare Tool, Includes Wrenches, Safety Features Lock-Off Lever, Switch Location Top, Power Source Air Powered
