  11. Hydraulic Gear Pump, 5/8 in Dia Shaft, 6.8 GPM at 2000 RPM 2-Bolt A CCW

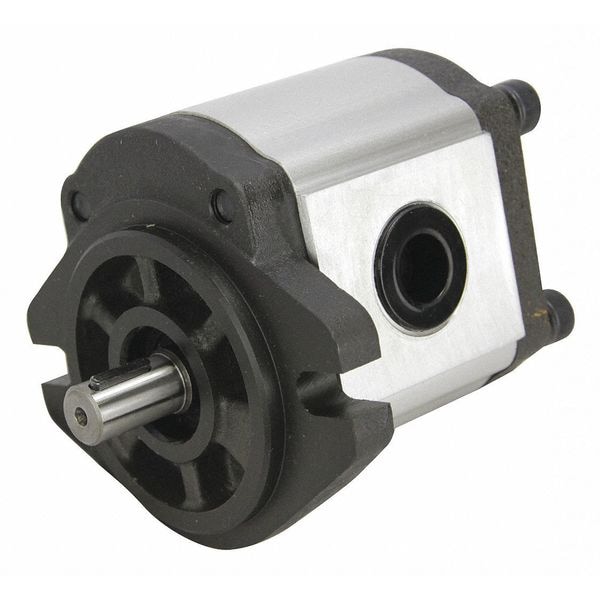

Chief Hydraulic Gear Pump, 5/8 in Dia Shaft, 6.8 GPM at 2000 RPM 2-Bolt A CCW 252154 - main

Hydraulic Gear Pump, 5/8 in Dia Shaft, 6.8 GPM at 2000 RPM 2-Bolt A CCW

  • Mfr # 252154

  • Zoro # G9975357

product price: $223.99
/ea
Free Shipping & Returns

Key Features

Displacement (Cu. In./Rev.)
0.85
GPM @ 1800 RPM and 1000 PSI
6.62
GPM @ 3600 RPM and 1000 PSI
13.24
Max. Continuous PSI
3,000
Max. Pressure
3650
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
252154
Zoro #
G9975357
UPC #
-
Country of Origin
China

Dimensions

Length (In.)
4.35 in
Width (In.)
5.11 in
Shaft Outer Diameter
5/8 in
Discharge Connection Size
10 in
Overall Width
5.1 in
Media Intake Connection Size
12 in
Overall Length
4.4 in

Details

Displacement (Cu. In./Rev.)
0.85
GPM @ 1800 RPM and 1000 PSI
6.62
GPM @ 3600 RPM and 1000 PSI
13.24
Max. Continuous PSI
3,000
Max. Pressure
3650
Ports (Inlet)
12
Max. RPM
3600
Ports (Outlet)
10
Shaft Extension (In.)
1-13/64
Max. Intermittent Pressure (PSI)
3,650
GPM @ 3600 RPM & 1000 PSI
13.24
GPM @ 1800 RPM & 1000 PSI
6.62
Housing
Aluminum
Features
5/8 in Key Shaft
Nominal GPM @ 1200 RPM
4.41
Mounting
2 Bolt SAE A
Item
Hydraulic Gear Pump
Cover Material
Aluminum/Cast Iron
Rotation
CCW
Displacement @ High Pressure (cubic inches/rev.)
0.85 in
Oil Temperature - Maximum
175 Degrees F
Continuous Pressure- Maximum
3,000 psi
Motor Speed - Maximum
3,600 RPM
Media Intake Connection Type
SAE
End Cap Material
Aluminum/Cast Iron
Housing Material
Aluminum
Displacement per Revolution
0.85 cu in/rev
Shaft Type
Keyed
Motor Speed - Minimum
2,000 RPM

Description

Hydraulic Gear Pump, Displacement per Revolution 0.85 cu in/rev, Media Intake Connection Size 12 in, Discharge Connection Size 10 in, Continuous Pressure- Maximum 3,000 psi, Motor Speed - Maximum 3,600 RPM, Motor Speed - Minimum 2,000 RPM, Shaft Type Keyed, Rotation CCW, Housing Material Aluminum, Mounting Type 2 Bolt SAE A, End Cap Material Aluminum/Cast Iron, Media Intake Connection Type SAE, Oil Temperature - Maximum 175 Degrees F, Overall Length 4.4 in, Overall Width 5.1 in
