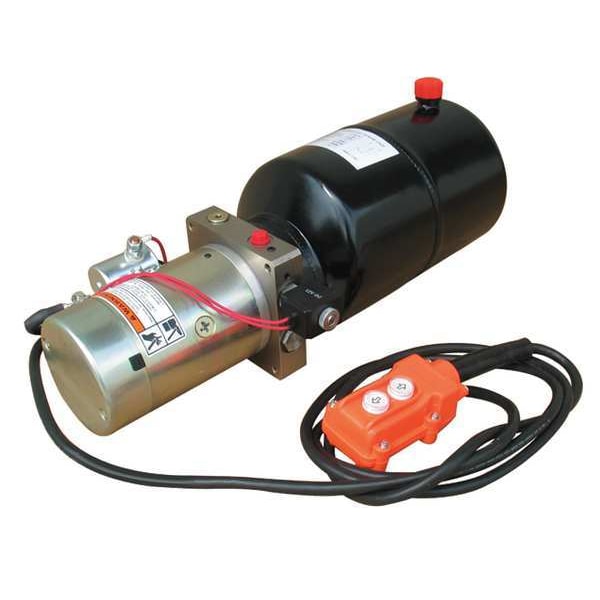

Hydraulic Power Unit 12V DC, Single Acting, 20.04 L x 7 W x 8.5 H

  • Mfr # 253119

  • Zoro # G5591957

product price:
$
628.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Power Source - Power Units
DC Power
Voltage
12VDC Motor, S3 Duty
Nominal Flow
1.3 gpm
Max. Pressure
2,500 psi
Reservoir Capacity
6 Qt. Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
253119
Zoro #
G5591957
UPC #
-
Country of Origin
China
Power Source - Power Units
DC Power
Voltage
12VDC Motor, S3 Duty
Nominal Flow
1.3 gpm
Max. Pressure
2,500 psi
Reservoir Capacity
6 Qt. Steel
Return Port
9/16"-18 (SAE 6)
Mounting
Horizontal
Item
Hydraulic Power Unit
RPM
2,600 RPM
Pressure Port
9/16"-18 (SAE 6)
Duty Cycle
Intermittent
Built-In Features
Single Acting, Wired Remote Buttons
HP
2 hp
Full Load Amps
300 A
Tank Material
Steel
Flow @ 3000 psi
1.3 gpm
Frame Design - Hydraulic Power Units
Frame Mount
Pump Stage
1
Mounting Orientation - Power Units
Horizontal
Flow @ 1500 psi
1.3 gpm
Hydraulic Pump Type
Gear
Control Valve Configuration
2-Way/2-Position
Circuit Design
Single Acting
Flow @ 2000 PSI
1.3 gpm
Flow @ 2500 psi
1.3 gpm
Pump Displacement
2.1 cc/rev
Flow @ 1000 psi
1.3 gpm
Flow @ 500 psi
2.5 gpm
Control Station Included
Yes
Control Valve Type
Solenoid
Control Station No. of Buttons
2

Description

Hydraulic Power Unit, Circuit Design Single Acting, Power Source - Power Units DC Power, 2 hp HP, RPM 2,600 RPM, 12V DC, Full Load Amps 300 A, Pump Stage 1, Max. Pressure 2,500 psi, Nominal Flow 1.3 gpm, Reservoir Capacity 1.5 gal, Overall Length 22 1/4 in, Overall Width 10 in, Overall Height 8 3/4 in
