Shop CITEL
See all product information
Create Account

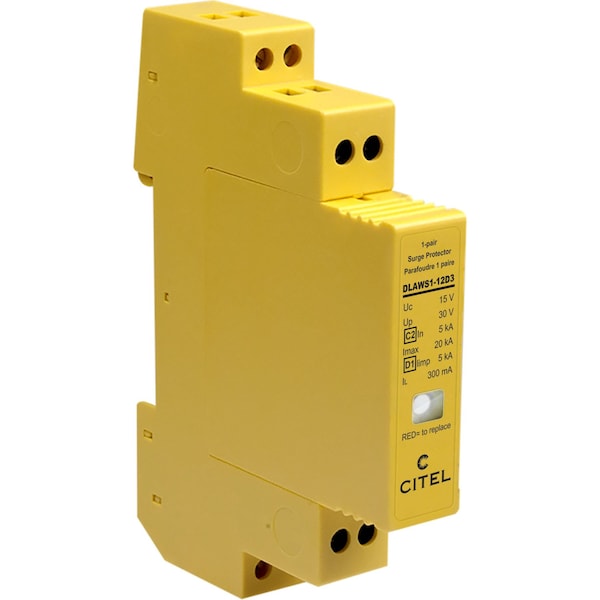

Surge Protection Device, 12V, 2 Wires
Mfr # DLAWS1-12D3
Zoro # G009227436
product price:Â
$
78.89
/ea
Key Features
Mounting Style
DIN Rail
Voltage
12V
Number of Wires
2 Wires
Modes of Protection
Common mode/Differential mode
Max. Surge Current per Mode
20kA
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DLAWS1-12D3
- Zoro #
- G009227436
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length
- 90 mm
- Depth
- 13 mm
- Width
- 65 mm
Details
- Item
- Surge Protection Device
- Mounting Style
- DIN Rail
- Voltage
- 12V
- Number of Wires
- 2 Wires
- Modes of Protection
- Common mode/Differential mode
- Max. Surge Current per Mode
- 20kA
- Nominal Discharge Current
- 5 kA
- Modular
- Yes
- Filtering
- Yes
- Max. Continuing Operating Voltage
- 15/72/72V
- Enclosure NEMA Rating
- NEMA 2
- IP Rating
- IP20
- Enclosure Material
- Thermoplastic
