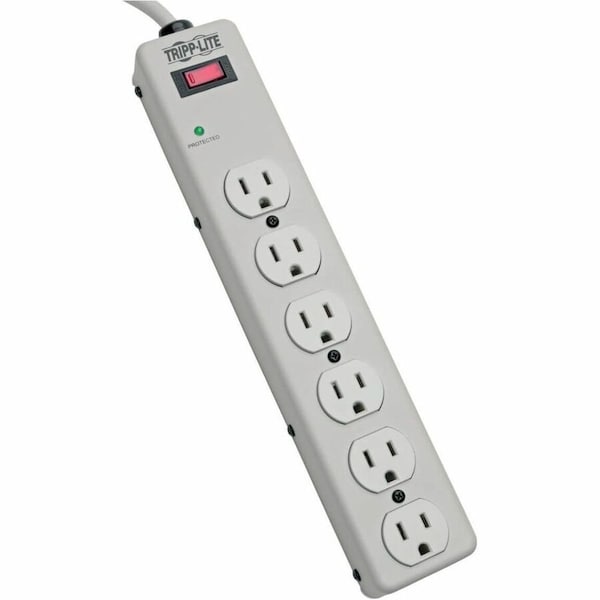

Tripp Lite Surge Suppressor, 120V, 60kA TLM606HJ - main

Surge Suppressor, 120V, 60kA

  • Mfr # TLM606HJ

  • Zoro # G0572540

product price: $48.45
/ea

Key Features

Voltage
120V
Modes of Protection
H-G, H-N, N-G
Max. Surge Current per Mode
60kA
Max. Surge Current per Phase
60kA
Filtering
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TLM606HJ
Zoro #
G0572540
UPC #
037332135698
Country of Origin
China

Dimensions

Length
1 1/2 in
Depth
2 1/2 in
Width
12 1/2 in
Input Cord Length (ft.)
6
Power Cord/Cable Length
6 ft
Unit Dimensions (hwd / in.)
1.500 x 12.500 x 2.500

Details

Item
Surge Suppressor
Voltage
120V
Modes of Protection
H-G, H-N, N-G
Max. Surge Current per Mode
60kA
Max. Surge Current per Phase
60kA
Filtering
Yes
Enclosure Material
Metal, Plastic
Modular / Nonmodular
NEMA 5-15P
Color
Light Gray
NEMA Receptacle Configuration
NEMA 5-15R
Output Voltage
120 V AC
NEMA Plug Configuration
NEMA 5-15P
Transformer Accommodation
(2) Yes
Recommended Electrical Service
120V (110-125V)
Maximum Surge Amps
60000
Frequency Compatibility
50 / 60 Hz
Output (Watts)
1800
Voltage Compatibility (VAC)
120
AC Suppression Response Time
< 1 ns
UL1363 (Power Tap)
UL1363
Clamping Voltage (RMS)
150
AC Suppression Joule Rating
1340
Circuit Breaker (amps)
15
Receptacle Color
Light gray
UL1449 Let Through Rating
400V
Diagnostic LED Details
Built-in LED confirms suppressor "protection present" (green) status
Outlet Orientation
Single row of outlets
Diagnostic LED(s)
Yes
Form Factors Supported
Supports floor / wall / desktop placement
Switches
Illuminated on/off switch with integrated 15 amp circuit breaker
Integrated Keyhole Mounting Slots
Yes
Input Cord Gauge Type
14 gauge; SJT
EMI / RFI Filtering
Up to 20 dB
Outlets Measurement (Center to Center)
38.89mm
Nominal Input Voltage(s) Supported
120V AC
Automatic Shut-Off
Yes
UL1449 3rd Edition (AC Suppression)
UL1449 3rd Edition
Compatibility
Computer, Home Stereos, Televisions, VCR, DVD Player, Power Tools, Lamps/Lighting
Receptacles
6 x NEMA 5-15R
Power Handling
1800 VA
Package Contents
Protect It! TLM606HJ 6-Outlets Surge Suppressor, Instruction Manual and Warranty Information
Surge Energy Rating
1340 J
Assembly Required
No
Maximum Line Current
15 A
Input Cord Details
SJT
Mounting Holes or Slots
Yes
Input Cord Gauge (AWG)
14
Network (Ethernet) Protection
No
Product Certifications
cUL Listed; UL 1449; UL 1363; UL Listed
Power Cord Color
Light Gray
Right-Angle Plug
No
Package Includes
TLM606HJ surge suppressor;Instruction manual and warranty information
Housing Color
Light Gray
Mounting Style
wall-mounting
Includes
Instruction Manual and Warranty Information

Description

Ac Surge Suppression
