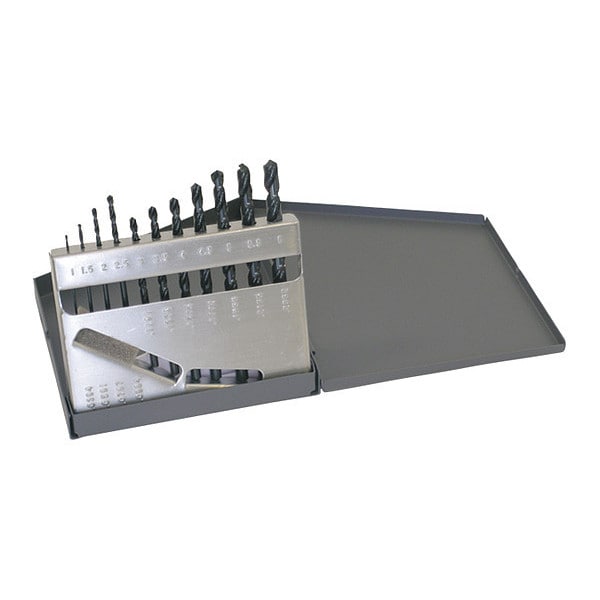

11PC 1mm-6mmx.5mm HSS 118 Degree General Purpose Jobber Length Drill Set Cle-Line 1899 Steam Oxide RHS/RHC
- Mfr # C21130
- Zoro # G4952510
product price:
$
26.59
/ea
Key Features
Number of Pieces
11
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Grouping
Drill Bit Set
Depth:Dia. Ratio
4xD
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- C21130
- Zoro #
- G4952510
- UPC #
- 697334211303
- Country of Origin
- United States
Dimensions
- Depth:Dia. Ratio
- 4xD
- Shank Dia.
- 0mm
- Drill Bit Size
- 1 mm to 6 mm by 0.5 mm
- Drill Bit Dimension Type
- Metric
- Depth x Dia. Ratio
- 4xD
- Drill Point Length
- Various
- Drill Diameter Tolerance
- +0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in
- Drill Length Class
- Jobber-Length
- Drill Bit Sizes Included
- 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm
- Largest Drill Bit Size
- 6 mm
- Smallest Drill Bit Size
- 1 mm
Description
The CLE-LINE - C21130 is a jobber-length drill bit set consisting of 11 high-speed steel bits with sizes ranging from 1 mm to 6 mm in 0.5 mm increments. These bits have a straight shank and a spiral flute with a right-hand spiral direction, suitable for drilling operations using metric dimensions. The drill bits have a 118-degree radial point and are finished with a black oxide coating. This set is non-coolant through and features a variable helix angle.
Key Features:
- Drill bit sizes included: 1 mm to 6 mm in 0.5 mm steps (11 pieces total).
- Jobber-length drill bits with a depth-to-diameter ratio of 4xD.
- Material: High speed steel with a black oxide finish.
- Straight shank type with 0 mm shank diameter specified.
- Spiral flute design with right-hand spiral and cutting direction.
- Drill point: 118° radial point angle.
- Metric measurement system.
- Drill diameter tolerance ranges from +0.0000 in /-0.0005 in to +0.0000 in /-0.0010 in.
- Non-coolant through design, requiring external coolant application if needed.
