29PC 118 Degree General-Purpose Taper Length Drill Set Cleveland 2510 Steam Oxide HSS RHS/RHC 1/16-1/2
Mfr # C00962
Zoro # G2988102
Key Features
Specifications
Product Information
- MFR #
- C00962
- Zoro #
- G2988102
- UPC #
- 697334009627
- Country of Origin
- United States
Dimensions
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Shank Dia.
- 1/16 in, 1/2 in
- Drill Bit Dimension Type
- Fractional Inch
- Depth x Dia. Ratio
- 4xD
- Depth:Dia. Ratio
- 4xD
- Largest Drill Bit Size
- 1/2 in
- Smallest Drill Bit Size
- 1/16 in
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
- Drill Length Class
- Taper-Length
Description

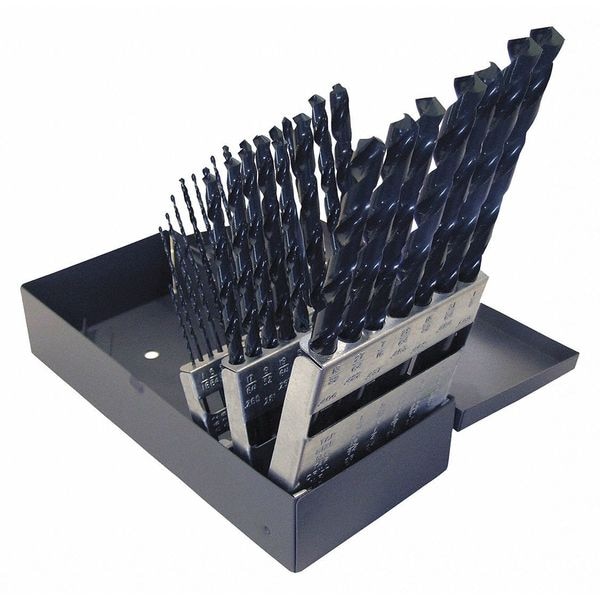

The CLEVELAND C00962 Taper Length Drill Bit Set (Series 2510) includes 29 fractional inch drill bits ranging in size from 1/16 inch to 1/2 inch. Made from high speed steel with a black oxide finish, these drill bits are a general-purpose high-speed steel drill bit grade for use on materials corresponding to ISO material codes K and P. They feature a conventional 118-degree radial point; two spiral flutes; taper length geometry provides a 4xD depth-to-diameter ratio. The set meets ASME B94.11M-1993 dimensional/geometry requirements for drill bits in this set (series 2510). Its right-hand cutting direction accommodates drilling in carbon steel, alloy steel, and cast iron when used according to recommended feeds/speeds for the material type.
Key Features:
- 29 drill bits sized from 1/16" to 1/2" by 64ths
- High Speed Steel construction, general purpose grade
- Fractional inch measurement system
- Taper length design with 4x depth-to-diameter ratio
- Spiral flute type with 21° to 34° helix angle
- 2 flutes per bit for chip removal
- Radial (conventional) 118° point angle
- Straight shank type for sizes 1/16" to 1/2" by 64ths
- Black oxide finish for surface treatment
- Compliance with ASME B94.11M-1993 standard
