15PC 1/16-1/2x1/32 HSS 118 Degree General Purpose Jobber Length Drill Set Cle-Line 1898 Bright RHS/RHC

  • Mfr # C21108

  • Zoro # G4952705

product price:
$
61.99
/ea

Key Features

Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Depth:Dia. Ratio
4xD
Drill Bit Grouping
Drill Bit Set
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C21108
Zoro #
G4952705
UPC #
697334211082
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
4xD
Drill Bit Size
1/16 in to 1/2 in by 32nds
Depth x Dia. Ratio
4xD
Drill Bit Dimension Type
Fractional Inch
Drill Diameter Tolerance
+0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in
Drill Point Length
0.0000 in
Drill Length Class
Jobber-Length
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in, 9/32 in
Smallest Drill Bit Size
1/16 in
Largest Drill Bit Size
1/2 in
Overall Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Wire Rope Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Grouping
Drill Bit Set
Standards
ASME B94.11M, DIN 338
List Number
1898
Coolant Fed
Non-Coolant Through
Flute Type
Spiral
Helix Angle
Variable
Drill Bit Point Type
Radial Point
Measurement System
Fractional Inch
Shank Type - Machining
Straight
Series
1898
Spiral Direction
Right Hand
Material - Machining
High Speed Steel
Finish - Machining
Bright (Uncoated)
Number of Drill Bits
15
Primary Material Application
Aluminum, Cast Iron, Steel
Number of Flutes
2
Primary Material Application ISO Code
K, N, P
Thread Direction
Right Hand
Material Grade - Machining
General Purpose
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees
Drill Bit Case Type
Metal Index

Description

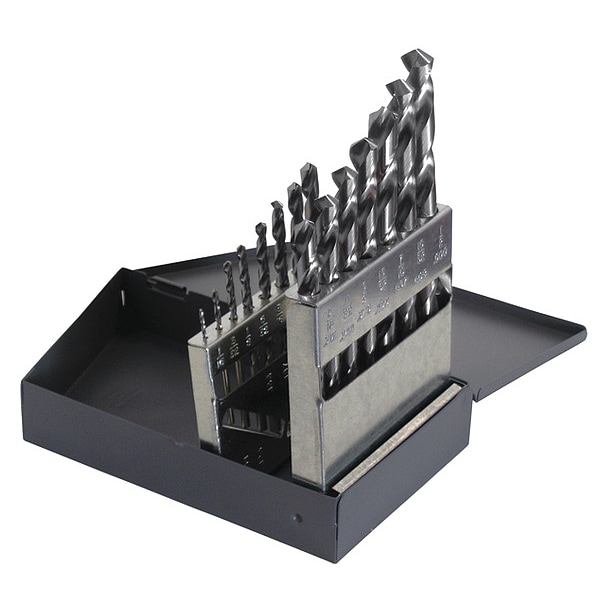

The CLE-LINE - C21108 is a jobber length drill bit set consisting of 15 pieces made from high speed steel with a general purpose grade. The set includes fractional inch sizes ranging from 1/16 inch to 1/2 inch. These drill bits have a straight shank, right-hand spiral direction, and are manufactured to meet ASME B94.11M and DIN 338 specifications. The drill bits come in a metal index case for organized storage and are designed with a typical 118-degree radial point angle.

Key Features:

  • Contains 15 drill bits with sizes from 1/16 in to 1/2 in.
  • Jobber length design with overall lengths ranging from 1 7/8 in to 6 in.
  • Made of high speed steel with a bright (uncoated) finish and two-flute spiral design.
  • Drill diameter tolerance range: +0.0000 in / -0.0005 to -0.0010 in.
  • Variable helix angle between 21 and 34 degrees with a variable helix angle between 21 and 34 degrees.
  • Non-coolant through (requires external coolant when used with applicable cutting conditions).
  • Compatible with materials classified under ISO codes K, N, and P (aluminum, cast iron, steel).
  • Right hand cutting thread and spiral direction with a straight shank type.
