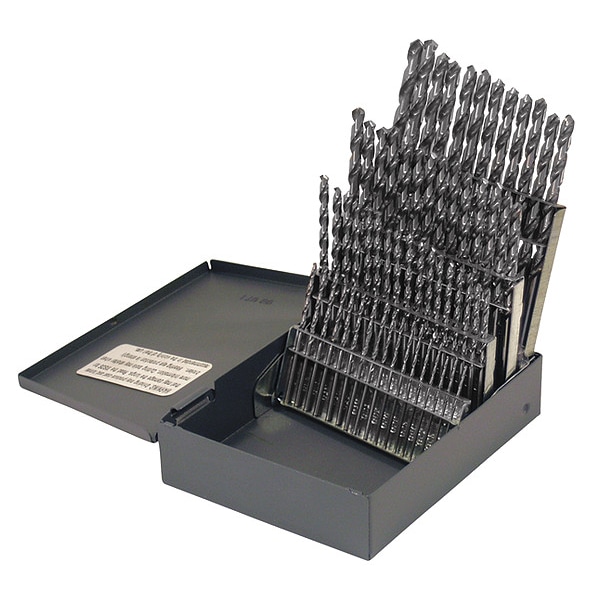

Name: 60PC No 1-No 60 HSS 118 Degree General Purpose Jobber Length Drill Set Cle-Line 1898 Bright RHS/RHC
Brand: Cle-Line
SKU: G4952571
Price: 101.99 USD
Availability: InStock

Details

MFR #: C21122
Zoro #: G4952571
UPC #: 697334211228
Country of Origin: United States
Item: Jobber Length Drill Bit Set
Number of Pieces: 60
Cutting Direction: Right Hand
Drill Bit Point Angle: 118 Degrees
Drill Bit Grouping: Drill Bit Set
List Number: 1898
Standards: ASME B94.11M, DIN 338
Coolant Fed: Non-Coolant Through
Flute Type: Spiral
Helix Angle: Variable
Material - Machining: High Speed Steel
Measurement System: Wire
Shank Type - Machining: Straight
Spiral Direction: Right Hand
Finish - Machining: Bright (Uncoated)
Drill Bit Point Type: Radial Point
Series: 1898
Number of Drill Bits: 60
Primary Material Application: Aluminum, Cast Iron, Steel
Number of Flutes: 2
Primary Material Application ISO Code: K, N, P
Thread Direction: Right Hand
Material Grade - Machining: General Purpose
Helix Angle - Maximum: 34 Degrees
Drill Bit Case Type: Metal Index
Helix Angle - Minimum: 21 Degrees

Description

The CLE-LINE C21122 is a jobber-length drill bit set comprising 60 pieces made from high-speed steel. The set includes drill bits ranging in size from #60 to #1, featuring a straight shank and an uncoated finish. Each bit has a radial point with a 118-degree point angle and variable helix angles between 21 and 34 degrees. This right-hand spiral drill bit set is intended for drilling applications in aluminum, cast iron, and steel (ISO codes K, N, P), with a wire measurement system and conformance to ASME B94.11M and DIN 338 standards. These are non-coolant-through bits; use externally supplied coolant during drilling as applicable to the workpiece and process.

Key Features:

Contains 60 drill bits with sizes from #60 up to #1.
Jobber-length design with overall lengths varying between 1 5/8 inches and 3 7/8 inches.
Two-flute spiral design with right-hand cutting and thread direction.
Drill diameter tolerance between +0.0000 in / -0.0005 in to +0.0000 in / -0.0007 in.
Intended for drilling applications in aluminum, cast iron, and steel (ISO codes K, N, P).
Features a straight shank type for mounting in drill chucks.
With a 118-degree point angle for general-purpose drilling geometry.
Supplied in a metal index case.

Dimensions

Depth:Dia. Ratio: 4xD
Drill Bit Dimension Type: Wire
Drill Bit Size: #60 to #1
Depth x Dia. Ratio: 4xD
Drill Diameter Tolerance: +0.0000 in /-0.0005 in - +0.0000 in /-0.0007 in
Drill Length Class: Jobber-Length
Drill Point Length: Various
Largest Drill Bit Size: #1
Smallest Drill Bit Size: #60
Drill Bit Sizes Included: #1, #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9
Overall Length: 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
Wire Rope Length: 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
Length: 1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in
