21PC 135 Degree Heavy-Duty Jobber Length Drill Set Cle-Line 1801 Steam Oxide HSS RHS/RHC 1/16-3/8x1/64

  • Mfr # C21115

  • Zoro # G2983416

product price:  $59.39
/ea

Key Features

Number of Pieces
21
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
C21115
Zoro #
G2983416
UPC #
697334211150
Country of Origin
United States

Dimensions

Drill Bit Size
1/16 in to 3/8 in by 64ths
Depth:Dia. Ratio
4xD
Drill Bit Dimension Type
Fractional Inch
Sizes Included
1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8"
Shank Dia.
1/16 in
Depth x Dia. Ratio
4xD
Size Range
1/16"-3/8"
Drill Length Class
Jobber-Length
Smallest Drill Bit Size
1/16 in
Largest Drill Bit Size
3/8 in
Drill Bit Sizes Included
1/16 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/64 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in
Overall Length
1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
21
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
List Number
1801
Point Type
Split Point
Drill Bit Grouping
Drill Bit Set
Standards
ASME B94.11M-1993, DIN 338
Drill Style
Jobber Drill
Shank Type
Straight
Measurement System
Fractional Inch
Left/Right Hand
Right
Flute Type
Spiral
Material Grade - Machining
Heavy Duty
Primary Material Application
Cast Iron, Steel
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Finish - Machining
Black Oxide
Number of Drill Bits
21
Aircraft Drill
No
Drill Bit Point Type
Split Point
Drill Bit Case Type
Metal Index
Number of Flutes
2
Primary Material Application ISO Code
K, P
Spiral Direction
Right Hand
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

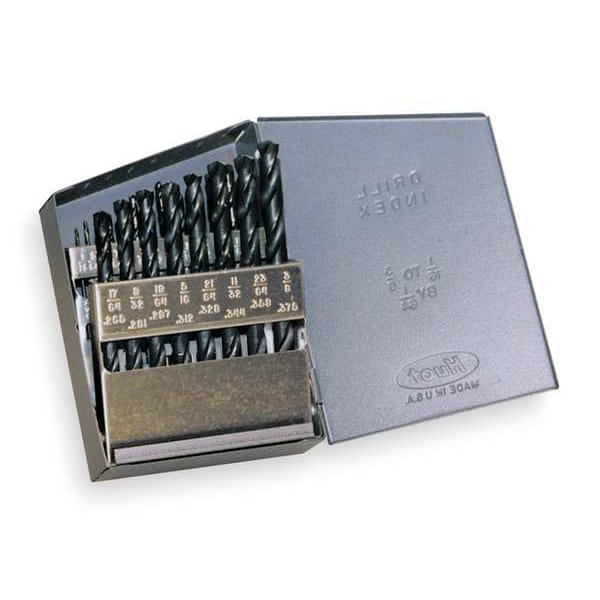

The CLE-LINE - C21115 is a jobber length drill bit set consisting of 21 high-speed steel bits intended for drilling cast iron and steel applications. The bits range in size from 1/16" to 3/8" with fractional inch measurements, featuring a split point tip and right-hand spiral direction for use in right-hand, general drilling applications. The bits come in a metal drill index for organized storage and meets the dimensional/fixture requirements described in ASME B94.11M-1993 and DIN 338 (as applicable to this product).

Key Features:

  • includes 21 drill bits with sizes ranging from 1/16" to 3/8" (64ths increments)
  • manufactured from high-speed steel (HSS)
  • jobber length with overall lengths are 1 7/8" to 4" (jobber length), as specified for this set.
  • with a 135° split point tip geometry
  • Two-flute spiral design with helix angles between 21° and 34° and right-hand cutting direction.
  • Straight shank type with 1/16" shank diameter.
  • Black oxide finish on the bits.
  • included with a metal drill bit index case for storage and identification
