29PC 118 Degree General Purpose Jobber Length Drill Set Cle-Line 1898 Bright HSS RHS/RHC 1/16-1/2x1/64
Mfr # C21117
Zoro # G7370426
Key Features
Specifications
Product Information
- MFR #
- C21117
- Zoro #
- G7370426
- UPC #
- 697334211174
- Country of Origin
- United States
Dimensions
- Drill Bit Dimension Type
- Fractional Inch
- Drill Bit Size
- 1/16 in to 1/2 in by 64ths
- Sizes Included
- 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
- Shank Dia.
- 1/6 in
- Depth:Dia. Ratio
- 4xD
- Depth x Dia. Ratio
- 4xD
- Drill Length Class
- Jobber-Length
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Largest Drill Bit Size
- 1/2 in
- Smallest Drill Bit Size
- 1/16 in
- Overall Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
- Wire Rope Length
- 1 7/8 in, 2 in, 2 1/4 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 1/8 in, 3 1/4 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in, 5 3/8 in, 5 1/2 in, 5 5/8 in, 5 3/4 in, 5 7/8 in, 6 in
Description

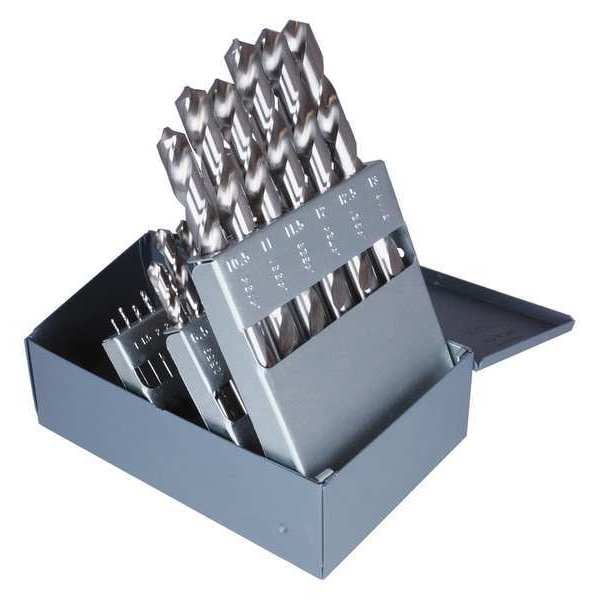

consists of 29 pieces of jobber length drill bits intended for standard drilling applications. Made from high speed steel; conventional point angle: 118°. The drill bits use a conventional point design (118° point angle). The bits are intended for machining materials corresponding to ISO categories K, N, and P (aluminum, cast iron, steel). The drill bits have right-hand spiral flutes/spiral direction for chip evacuation. Bit sizes range from 1/16 in to 1/2 in (increments by 64ths). Overall lengths range from 1 7/8 in to 6 in. Includes a metal index case for storage/organization of the bits.
Key Features:
- Drill bit sizes range from 1/16" to 1/2" by 64ths, totaling 29 pieces.
- Made from high speed steel; conventional point angle: 118°.
- Jobber length design with overall lengths between 1 7/8" and 6".
- Two-flute spiral with helix angles between 21° and 34°.
- Conventional point angle: 118°.
- Straight shank type with a diameter of 1/16".
- Complies with ASME B94.11M-1993 and DIN 338 standards.
- Intended application materials: ISO categories K, N, and P (aluminum, cast iron, steel).
- Delivered in a metal drill index case for bit organization.
- Not intended for aircraft/aerospace drilling applications.
