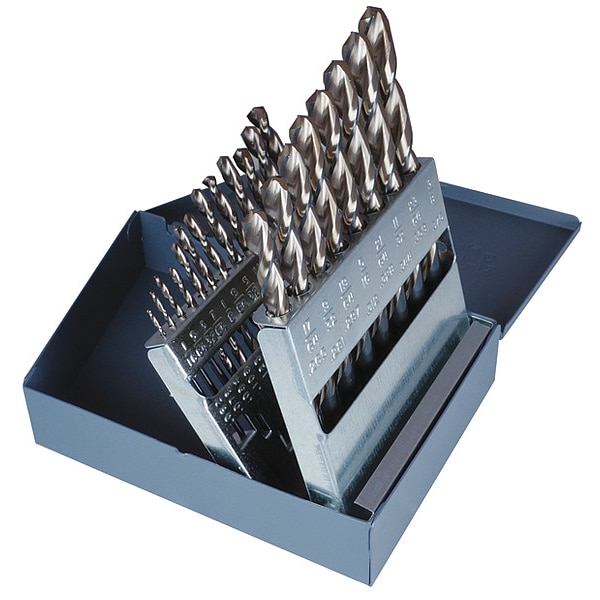

21PC 135 Degree Heavy-Duty Parabolic Jobber Drill Set Cle-Line 1872 Black & Gold HSS 1/16-3/8x1/64

  • Mfr # C18621
  • Zoro # G4954577
product price:
$
76.35
/ea

Key Features

Number of Pieces
21
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Grouping
Drill Bit Set
Depth:Dia. Ratio
8xD
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C18621
Zoro #
G4954577
UPC #
697334186212
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
8xD
Depth x Dia. Ratio
8xD
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/16 in to 3/8 in by 64ths
Drill Length Class
Jobber-Length
Drill Diameter Tolerance
+0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in
Drill Point Length
0.0000 in
Largest Drill Bit Size
1/16 in
Smallest Drill Bit Size
3/8 in
Drill Bit Sizes Included
1/16 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/64 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
21
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Grouping
Drill Bit Set
Standards
Not Rated
Coolant Fed
Non-Coolant Through
Helix Angle
40 Degrees
Flute Type
Spiral
Material - Machining
High Speed Steel
Finish - Machining
Black Oxide
Shank Type - Machining
Straight
Series
1872
Drill Bit Point Type
Split Point
Measurement System
Fractional Inch
Spiral Direction
Right Hand
Number of Drill Bits
21
Thread Direction
Right Hand
Helix Angle - Maximum
40 Degrees

Description

The CLE-LINE - C18621 is a jobber-length drill bit set consisting of 21 high speed steel drill bits. The bits are sized in fractional inches, ranging from 1/16 inch to 3/8 inch, and have right-hand spiral flutes, split points, and 135-degree point angles. These bits have a black oxide finish and a straight shank design, compatible with drilling equipment that accepts fractional-inch drill sizes.

Key Features:

  • Contains 21 drill bits sized from 1/16" to 3/8" by 64ths increments.
  • Made from high speed steel for machining purposes.
  • Right-hand spiral flutes, split points, and 135-degree point angles.
  • Straight shank type compatible with chucks that accept the included shank diameter and standard straight-shank formats.
  • Black oxide finish.
  • Non-coolant-through design; use external coolant when required for the intended machining operation.
  • Drill diameter tolerance ranges from +0.0000 in / -0.0005 in to +0.0000 in / -0.0010 in.
