  6. 23PC 1/4-20 - 1/2-13 UNC and UNF Plug Hand Tap and Two-Piece Die Set Cle-Line 5512

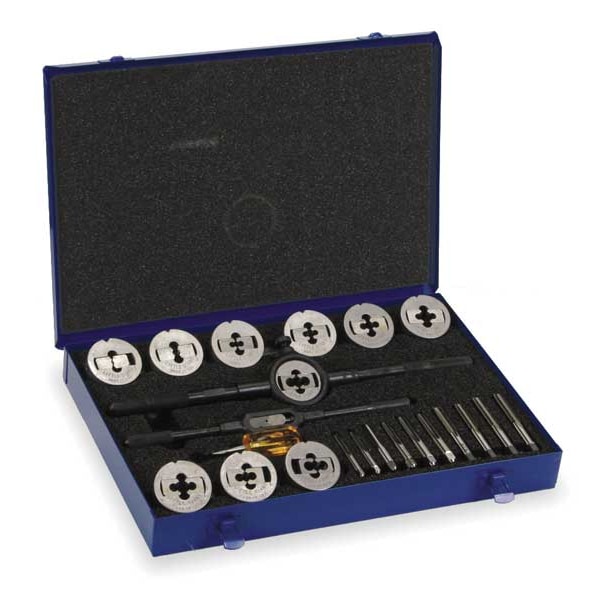

Cle-Line 23PC 1/4-20 - 1/2-13 UNC and UNF Plug Hand Tap and Two-Piece Die Set Cle-Line 5512 C00612 - main

23PC 1/4-20 - 1/2-13 UNC and UNF Plug Hand Tap and Two-Piece Die Set Cle-Line 5512

  • Mfr # C00612

  • Zoro # G2146934

product price:  $1,239.99
/ea
Free Shipping & Returns

Key Features

Sizes Included
1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20
Number of Pieces
23
Material
High Speed Steel
Thread Direction
Right Hand
Type
Fractional
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C00612
Zoro #
G2146934
UPC #
697334006121
Country of Origin
United States

Dimensions

Sizes Included
1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20
Size Range
1/4" to 1/2"
Size/Range
1/4 to 1/2"
Tap Dimension Type
Inch
Cutting Sizes
10
Tap Sizes Included
1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20
55% Thread Drill Size
#3, 11.30mm, 11.80mm, 11/32 in, 5.70mm, 8.40mm, 9/32 in, I
Thread Sizes Included
1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20
Max. Tap Thread Size
1/2"-20
Min. Tap Thread Size
1/4"-20
75% Thread Drill Size
#7, 11.40mm, 27/64 in, 5.45mm, 5/16 in, 8.50mm, F, I
Die Thread Sizes Included
1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20
Min. Bore Dia.
1/4 in -20 NC
65% Thread Drill Size
#5, 11.00mm, 11.60mm, 17/64 in, 7/32 in, J, P, R
Tap Shank Dia.
Table 302
Dimensions Standard
Fractional Inch
Max. Die Thread Size
1/2"-20
Tap Overall Length
Table 302

Details

Item
Tap and Die Set
Number of Pieces
23
Material
High Speed Steel
Thread Direction
Right Hand
Type
Fractional
SAE or Metric
SAE
Left/Right Hand
Right Hand
Tap Chamfer
Plug
Standards
ANSI
Die Type
2-Piece
Tap Wrench Number
#5
Die Shape
Round Fixed
Die Material
High Speed Steel
Includes
Tap, Die and Collet for Each Size, Plastic Case
Thread Type
UNC, UNF
Finish
Mill
Tap Material
High Speed Steel
Number of Flutes
4
Features
Self Alignment
Tap Finish
Bright (Uncoated)
Helix Angle
0 Degrees
Secondary Material Application ISO Code
M
Spiral Direction
Neutral
Die Finish
Bright (Uncoated)
Primary Material Application ISO Code
H, K, M, N, P, S
Coolant Fed
Non-Coolant Through
Die Series
0550
Extended Shank
No
Tap Series
HTGP
Number Of Taps
10
Powdered Metal Base Material
No
Number of Dies in Set
10
Finish - Machining
Bright (Uncoated)
Thread Limit
H3, H4
Tap Material Grade
M2
Measurement System
Fractional Inch
Die Material Grade
Carbon Steel
Extended Neck
No
Tap Shank Standard
Table 302
Extension Tap
No
Primary Material Application
All Materials
Material - Machining
High Speed Steel
Tap Type
Hand Tap
Secondary Material Application
Stainless Steel
Class of Fit
2B
Thread Standard
UNC, UNF
Threads per Inch
13, 14, 16, 18, 20, 24, 28
Case Type
Metal

Description

Tap and Die Set, Number of Pieces 23, Die Shape Round Fixed, Tap Type Hand Tap, Die Material High Speed Steel, Thread Sizes Included 1/2 In.-13, 1/2 In.-20, 1/4 In.-20, 1/4 In.-28, 3/8 In.-16, 3/8 In.-24, 5/16 In.-18, 5/16 In.-24, 7/16 In.-14, 7/16 In.-20, Die Thread Sizes Included 1/2 In.-13, 1/2 In.-20, 1/4 In.-20, 1/4 In.-28, 3/8 In.-16, 3/8 In.-24, 5/16 In.-18, 5/16 In.-24, 7/16 In.-14, 7/16 In.-20, Number Of Taps 10, Number of Dies in Set 10, Thread Standard UNC, UNF
