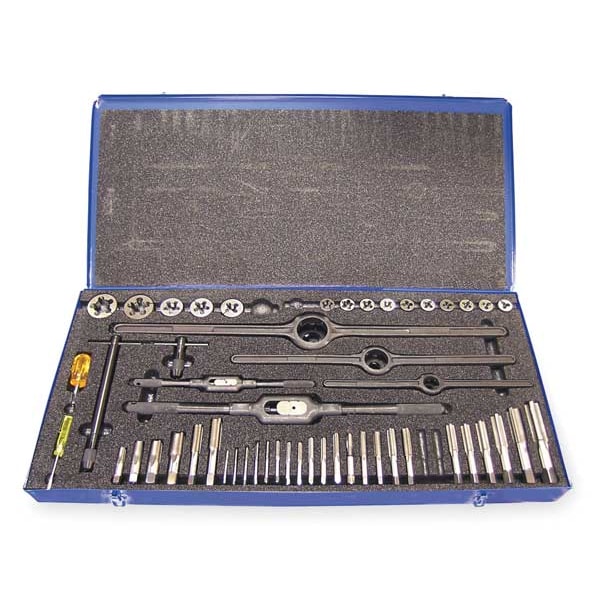

Cle-Line 52PC HSSPlugHandTap & CarbonRndAdj Die Set Cle-Line 28 Sizes 4-40 To 1-14, 1/4-18 To 1/2-14, M14&M18 C00533 - main

52PC HSSPlugHandTap & CarbonRndAdj Die Set Cle-Line 28 Sizes 4-40 To 1-14, 1/4-18 To 1/2-14, M14&M18

  • Mfr # C00533

  • Zoro # G1044416

product price:  $1,876.99
/ea
Free Shipping & Returns

Key Features

Sizes Included
4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, M14x1.25, M18x1.5, 1/8-17, 1/4-18, 3/8-18, 1/2-24 NPT
Number of Pieces
52
Material
High Speed Steel
Thread Direction
Right Hand
Type
Fractional/Metric
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C00533
Zoro #
G1044416
UPC #
697334005339
Country of Origin
United States

Dimensions

Sizes Included
4-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 9/16-12, 9/16-18, M14x1.25, M18x1.5, 1/8-17, 1/4-18, 3/8-18, 1/2-24 NPT
Size/Range
#4 to 9/16", M14 to M18, 1/8 to 1/2" NPT
Cutting Sizes
28 Taps, 15 Dies
Min. Tap Thread Size
1/4"-20
Tap Sizes Included
#10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1 in -14 NS, 1/2 in -13 NC, 1/2 in -14 NPT, 1/2 in -20 NF, 1/4 in -18 NPT, 1/4 in -20 NC, 1/4 in -28 NF, 1/8 in -27 NPT, 3/4 in -16 NF, 3/8 in -16 NC, 3/8 in -18 NPT, 3/8 in -24 NF, 5/16 in -18 NC, 5/16 in -24 NF, 5/8 in -18 NF, 7/16 in -14 NC, 7/16 in -20 NF, 7/8 in -14 NF, 9/16 in -18 NF, M14 x 1.5, M18 x 1.5
Max. Tap Thread Size
1"-14
Tap Shank Dia.
Table 302
65% Thread Drill Size
#23, #34, #5, 1/2 in, 10.00mm, 11.00mm, 11.60mm, 12.50mm, 13/16 in, 17.70mm, 17/64 in, 2.30mm, 21/32 in, 3.50mm, 37/64 in, 4.15mm, 4.60mm, 7/32 in, J, P, R, V
Tap Overall Length
Table 302
Thread Sizes Included
#10-24 NC, #10-32 NF, #12-24 NC, #4-40 NC, #6-32 NC, #8-32 NC, 1"-14 NS, 1/2"-13 NC, 1/2"-14 NPT, 1/2"-20 NF, 1/4"-18 NPT, 1/4"-20 NC, 1/4"-28 NF, 1/8"-27 NPT, 3/4"-16 NF, 3/8"-16 NC, 3/8"-18 NPT, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 5/8"-18 NF, 7/16"-14 NC, 7/16"-20 NF, 7/8"-14 NF, 9/16"-18 NF, M14 x 1.5, M18 x 1.5
55% Thread Drill Size
#13, #21, #3, #32, 1/2 in, 10.20mm, 11.30mm, 11.80mm, 11/32 in, 12.90mm, 14.80mm, 16.90mm, 17.90mm, 20.90mm, 3.60mm, 3/32 in, 4.25mm, 5.70mm, 8.40mm, 9/32 in, I, W
Dimensions Standard
Fractional Inch
75% Thread Drill Size
#21, #25, #36, #7, 11.40mm, 12.20mm, 12.50mm, 14.50mm, 16.50mm, 17.50mm, 2.20mm, 20.40mm, 27/64 in, 3.40mm, 4.45mm, 5.45mm, 5/16 in, 8.50mm, 9.95mm, F, I, U
Min. Bore Dia.
1/4 in -20 NC
Die Thread Sizes Included
1"-14 NS, 1/2"-13 NC, 1/2"-20 NF, 1/4"-20 NC, 1/4"-28 NF, 3/4"-16 NF, 3/8"-16 NC, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 5/8"-18 NF, 7/16"-14 NC, 7/16"-20 NF, 7/8"-14 NF, 9/16"-18 NF
Max. Die Thread Size
1"-14

Details

Item
Tap and Die Set
Number of Pieces
52
Material
High Speed Steel
Thread Direction
Right Hand
Type
Fractional/Metric
Die Type
Adjustable
Includes
Taps Only for Machine Screw, Metric, and Pipe Sizes, Taps and Dies for Fractional Sizes, Steel Case with Foam Liner
Tap Wrench Number
#5, #7, T16, T9
Finish
Mill
Left/Right Hand
Right Hand
Thread Type
NPT, UNC, UNF, UNS
Standards
ANSI
SAE or Metric
SAE, Metric
Number of Flutes
3, 4
Tap Finish
Bright (Uncoated)
Tap Material
High Speed Steel
Features
General Purpose Applications
Die Material
High Speed Steel
Die Shape
Round
Tap Material Grade
M2
Powdered Metal Base Material
No
Threads per Inch
14, 16, 18, 20, 24, 27, 28, 32, 40
Extension Tap
No
Die Finish
Bright (Uncoated)
Tap Type
Hand Tap
Helix Angle
0 Degrees
Class of Fit
2B
Material - Machining
High Speed Steel
Thread Pitch
1.50mm
Thread Standard
NPT, UNC, UNF, UNS
Case Type
Metal
Number of Dies in Set
15
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Extended Neck
No
Spiral Direction
Neutral
Finish - Machining
Bright (Uncoated)
Primary Material Application
All Materials
Tap Series
HTGP
Die Series
0610
Die Material Grade
Carbon Steel
Secondary Material Application ISO Code
M
Primary Material Application ISO Code
H, K, M, N, P, S
Tap Shank Standard
Table 302
Number Of Taps
28
Secondary Material Application
Stainless Steel
Extended Shank
No
Thread Limit
D6, H2, H3, H4

Description

Tap and Die Set, Number of Pieces 52, Die Shape Round, Tap Type Hand Tap, Die Material Carbon Steel, Thread Sizes Included #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1 In.-14, 1/2 In.-13, 1/2 In.-14, 1/2 In.-20, 1/4 In.-18, 1/4 In.-20, 1/4 In.-28, 1/8 In.-27, 3/4 In.-16, 3/8 In.-16, 3/8 In.-18, 3/8 In.-24, 5/16 In.-18, 5/16 In.-24, 5/8 In.-18, 7/16 In.-14, 7/16 In.-20, 7/8 In.-14, 9/16 In.-18, M14x1.5, M18x1.5
