  11. 23PC Plug Hand Tap and Two-Piece Die Set 5511 Cle-Line 10 Sizes 1/4-20 To 1-8 UNC

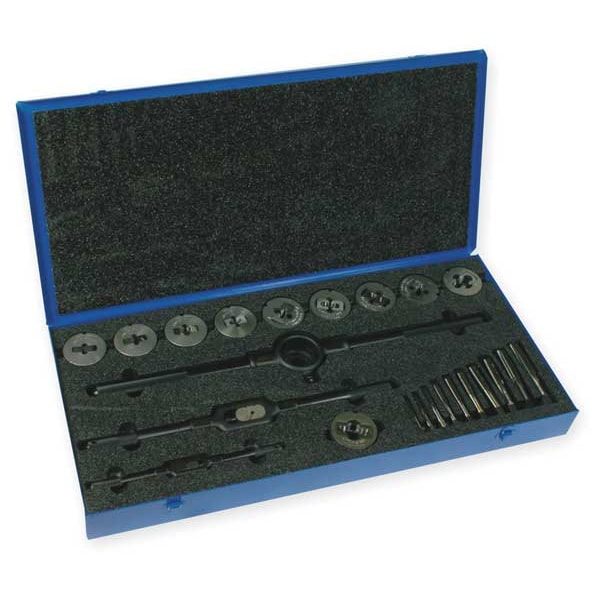

Cle-Line 23PC Plug Hand Tap and Two-Piece Die Set 5511 Cle-Line 10 Sizes 1/4-20 To 1-8 UNC C00611 - main

23PC Plug Hand Tap and Two-Piece Die Set 5511 Cle-Line 10 Sizes 1/4-20 To 1-8 UNC

  • Mfr # C00611

  • Zoro # G3024953

product price: $1,958.99
/ea
Free Shipping & Returns

Key Features

Tap Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Thread Direction
Right Hand
Number of Flutes
4
Number of Pieces
23
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C00611
Zoro #
G3024953
UPC #
697334006114
Country of Origin
India

Dimensions

Size Range
1/4" to 1"
Cutting Sizes
10
Sizes Included
1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13, 9/16"-12, 5/8"-11, 3/4"-10, 7/8"-9, 1"-8
Tap Dimension Type
Inch
Size/Range
1/4 to 1"
Max. Tap Thread Size
1"-8
Tap Shank Dia.
Table 302
Dimensions Standard
Fractional Inch
Thread Sizes Included
1"-8, 1/2"-13, 1/4"-20, 3/4"-10, 3/8"-16, 5/16"-18, 5/8"-11, 7/16"-14, 7/8"-9, 9/16"-12
Tap Overall Length
Table 302
Min. Tap Thread Size
1/4"-20
55% Thread Drill Size
#3, 1/2 in, 11.30mm, 14.20mm, 17.20mm, 29/32 in, 51/64 in, 8.40mm, I, W
Max. Die Thread Size
1"-8
75% Thread Drill Size
#7, 12.20mm, 13.60mm, 16.50mm, 19.50mm, 22.25mm, 27/64 in, 5/16 in, F, U
Tap Sizes Included
1"-8, 1/2"-13, 1/4"-20, 3/4"-10, 3/8"-16, 5/16"-18, 5/8"-11, 7/16"-14, 7/8"-9, 9/16"-12
Min. Bore Dia.
1/4 in -20 NC
65% Thread Drill Size
#5, 11.00mm, 12.50mm, 13.90mm, 16.90mm, 17/64 in, 25/32 in, 57/64 in, P, V
Die Thread Sizes Included
1"-8, 1/2"-13, 1/4"-20, 3/4"-10, 3/8"-16, 5/16"-18, 5/8"-11, 7/16"-14, 7/8"-9, 9/16"-12

Details

Item
Tap and Die Set
Tap Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Thread Direction
Right Hand
Number of Flutes
4
Number of Pieces
23
Die Shape
Round Fixed
Left/Right Hand
Right Hand
Tap Chamfer
Plug
Includes
Tap, Die and Collet for Each Size, Plastic Case
Standards
ANSI
Finish
Mill
SAE or Metric
SAE
Die Type
2-Piece
Thread Type
UNC
Tap Wrench Number
#5, #7
Die Material
High Speed Steel
Material
High Speed Steel
Number Of Taps
10
Extended Shank
No
Measurement System
Fractional Inch
Threads per Inch
8, 9, 10, 11, 12, 13, 14, 16, 18, 20
Tap Shank Standard
Table 302
Primary Material Application ISO Code
H, K, M, N, P, S
Die Material Grade
Carbon Steel
Secondary Material Application ISO Code
M
Helix Angle
0 Degrees
Tap Material Grade
M2
Extended Neck
No
Thread Limit
H3, H4
Spiral Direction
Neutral
Finish - Machining
Bright (Uncoated)
Thread Standard
UNC
Case Type
Metal
Tap Series
HTGP
Die Finish
Bright (Uncoated)
Class of Fit
2B
Material - Machining
High Speed Steel
Number of Dies in Set
10
Die Series
0550
Features
Self Alignment
Tap Type
Hand Tap
Primary Material Application
All Materials
Powdered Metal Base Material
No
Coolant Fed
Non-Coolant Through
Extension Tap
No
Secondary Material Application
Stainless Steel
Type
Fractional

Description

Tap and Die Set, Number of Pieces 23, Die Shape Round Fixed, Tap Type Hand Tap, Die Material High Speed Steel, Thread Sizes Included 1 In.-8, 1/2 In.-13, 1/4 In.-20, 3/4 In.-10, 3/8 In.-16, 5/16 In.-18, 5/8 In.-11, 7/16 In.-14, 7/8 In.-9, 9/16 In.-12, Die Thread Sizes Included 1 In.-8, 1/2 In.-13, 1/4 In.-20, 3/4 In.-10, 3/8 In.-16, 5/16 In.-18, 5/8 In.-11, 7/16 In.-14, 7/8 In.-9, 9/16 In.-12, Number Of Taps 10, Number of Dies in Set 10, Thread Standard UNC, Tap Shank Standard Table 302
