Name: 25PC CLE-MAX Jobber Length Drill Set Cleveland 2001G Steam Oxide HSS RHS/RHC 1mm-13mm
Brand: Cleveland
SKU: G0979428
Price: 219.99 USD
Availability: InStock

Details

MFR #: C71000
Zoro #: G0979428
UPC #: 697334710004
Country of Origin: United States
Item: Jobber Length Drill Bit Set
Number of Pieces: 25
Cutting Direction: Right Hand
Drill Bit Point Angle: 118 Degrees
Drill Bit Material: High Speed Steel
Includes: Metal Drill Index
Point Type: Radial
List Number: 2001G
Standards: ASME B94.11M, DIN 338
Drill Bit Grouping: Drill Bit Set
Left/Right Hand: Right
Measurement System: Metric
Shank Type: Straight
Drill Style: Jobber Drill
Primary Material Application: Cast Iron, Steel
Number of Drill Bits: 25
Coolant Fed: Non-Coolant Through
Drill Bit Point Type: Conventional Point
Number of Flutes: 2
Shank Type - Machining: Straight
Aircraft Drill: No
Decimal Equivalent: 0.0394 in -0.5118 in
Finish - Machining: Black Oxide
Material - Machining: High Speed Steel
Flute Type: Spiral
Drill Bit Case Type: Metal Index
Primary Material Application ISO Code: K, P
Spiral Direction: Right Hand
Material Grade - Machining: General Purpose
Helix Angle - Maximum: 34 Degrees
Helix Angle - Minimum: 21 Degrees

Description

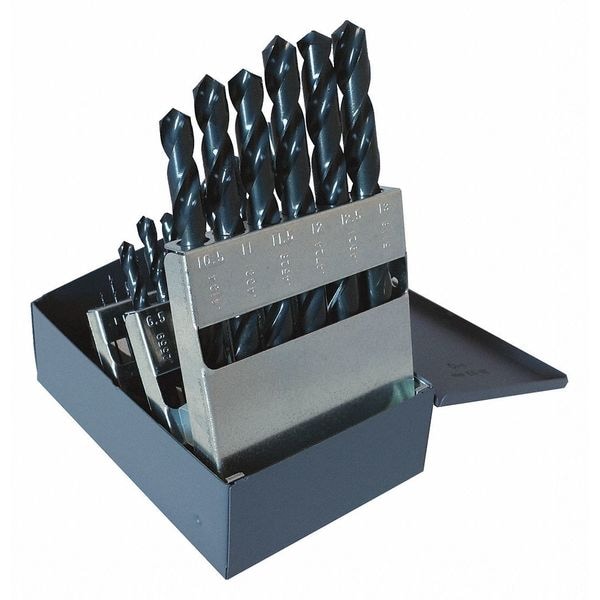

The CLEVELAND C71000 is a jobber length drill bit set composed of 25 high speed steel bits with sizes ranging from 1 mm to 13 mm in 0.5 mm increments. The bits feature a right-hand spiral direction and a radial point type with a 118-degree point angle. For general machining applications, these bits are intended for drilling cast iron and steel materials. The set includes a metal drill index for organized storage and selection.

Key Features:

Drill bit sizes: 1.00 mm to 13.00 mm, totaling 25 pieces.
Material: High speed steel, general purpose grade.
Length class: Jobber length with overall lengths between approximately 1.3 in and 5.6 in.
Point type: Radial with a 118-degree conventional point.
Flutes: 2 spiral flutes with helix angles from 21° to 34°.
Shank type: Straight shank corresponding to bit diameter.
Spiral direction: Right hand cutting direction.
Measurement system: Metric sizes included.
Conforms to ASME B94.11M and DIN 338 standards.

Dimensions

Drill Bit Size: 1 mm to 13 mm by 0.5 mm
Shank Dia.: 1.00 to 13.00 mm
Sizes Included: 1.00mm,1.50mm,2.00mm,2.50mm,3.00mm,3.50mm,4.00mm,4.50mm,5.00mm,5.50mm,6.00mm,6.50mm,7.00mm,7.50mm,8.00mm,8.50mm,9.00mm,9.50mm,10.00mm,10.50mm,11.00mm,11.50mm,12.00mm,12.50mm,13.00mm
Drill Bit Dimension Type: Metric
Depth x Dia. Ratio: 4xD
Size Range: 1mm-13mm
Depth:Dia. Ratio: 4xD
Smallest Drill Bit Size: 1 mm
Drill Length Class: Jobber-Length
Largest Drill Bit Size: 13 mm
Drill Bit Sizes Included: 1 mm, 1.5 mm, 10 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm, 12.5 mm, 13 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, 7.5 mm, 8 mm, 8.5 mm, 9 mm, 9.5 mm
Overall Length: 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
Wire Rope Length: 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
Length: 1 11/32 in, 1 9/16 in, 1 15/16 in, 2 15/64 in, 2 13/32 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in, 3 63/64 in, 4 19/64 in, 4 39/64 in, 4 59/64 in, 5 15/64 in, 5 19/32 in, 5 61/64 in
