20PC 118 Deg General Purpose Jobber Length Drill Set Cleveland 2002 Bright HSS RHS/RHC No 61-No 80
- Mfr # C00937
- Zoro # G2827443
Key Features
Specifications
Product Information
- MFR #
- C00937
- Zoro #
- G2827443
- UPC #
- 697334009375
- Country of Origin
- United States
Dimensions
- Drill Bit Dimension Type
- Wire
- Drill Bit Size
- #80 to #61
- Sizes Included
- #61,#62,#63,#64,#65,#66,#67,#68,#69,#70,#71,#72,#73,#74,#75,#76,#77,#78,#79,#80
- Shank Dia.
- 3/32 in
- Depth x Dia. Ratio
- 4xD
- Depth:Dia. Ratio
- 4xD
- Shank Length
- 1.25
- Shank Size
- 0.272
- Diameter
- 0.272
- Largest Drill Bit Size
- #61
- Drill Length Class
- Jobber-Length
- Smallest Drill Bit Size
- #61
- Drill Bit Sizes Included
- #61, #62, #63, #64, #65, #66, #67, #68, #69, #70, #71, #72, #73, #74, #75, #76, #77, #78, #79, #80
Description

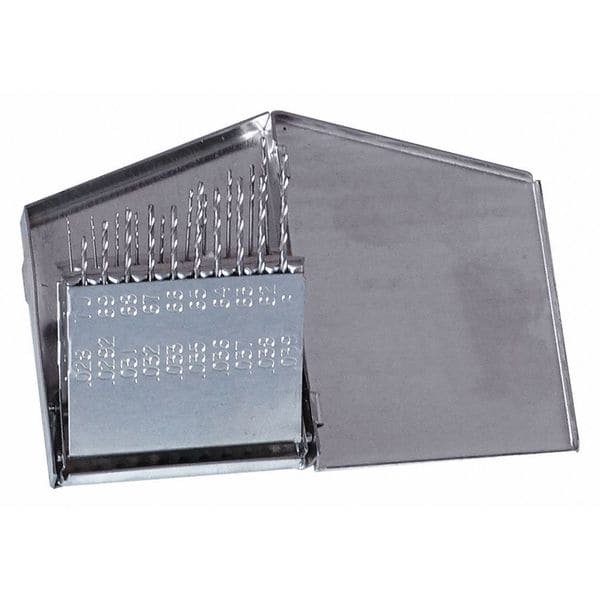

The CLEVELAND C00937 Jobber Length Drill Bit Set includes 20 drill bits sized from #80 to #61, designed for general drilling applications. Made of high speed steel with a conventional point type and a right-hand cutting direction, this set includes drill bit sizes corresponding to wire measurement system standards. The bits are bright (uncoated) and feature spiral flutes with a 118-degree point angle, intended for use in standard drilling applications. The set is supplied in a metal drill index for convenient storage and organization. Meets ASME B94.11M-1993 specifications.
Key Features:
- Contains 20 pieces with sizes ranging from #80 (smallest) to #61 (largest).
- Jobber length style with 3/32 inch shank diameter, 1.25 inch shank length, and straight shank type.
- High speed steel construction for machining versatility.
- Radial (conventional) point type with a 118° point angle for general drilling.
- Features spiral flutes for chip evacuation.
- Right-hand cutting direction suited for standard drilling operations.
- Includes drill bit sizes corresponding to wire measurement system standards.
- Includes a metal drill index case for organization and transport.
- Meets ASME B94.11M-1993 specifications.
- Not designed specifically for aircraft or aerospace use.
