Shop CLEVELAND

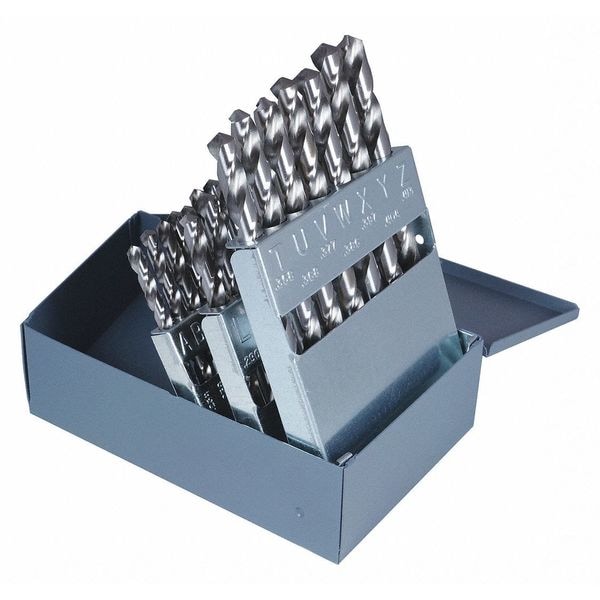

26PC CLE-MAX Jobber Length Drill Set Cleveland 2002G Bright HSS RHS/RHC A-Z

  • Mfr # C00939
  • Zoro # G0960473
product price:
$
197.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
26
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C00939
Zoro #
G0960473
UPC #
697334009399
Country of Origin
United States

Dimensions

Shank Dia.
A-Z
Depth:Dia. Ratio
4xD
Sizes Included
A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z
Depth x Dia. Ratio
4xD
Drill Bit Size
A to Z
Drill Bit Dimension Type
Letter
Size Range
A-Z
Drill Length Class
Jobber-Length
Largest Drill Bit Size
Z
Smallest Drill Bit Size
A
Drill Bit Sizes Included
A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z
Overall Length
3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in
Wire Rope Length
3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in
Length
3 7/8 in, 4 in, 4 1/8 in, 4 1/4 in, 4 3/8 in, 4 1/2 in, 4 5/8 in, 4 3/4 in, 4 7/8 in, 5 in, 5 1/8 in, 5 1/4 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
26
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Point Type
Radial
List Number
2002G
Drill Bit Grouping
Drill Bit Set
Standards
ASME B94.11M-1993, DIN 338
Shank Type
Straight
Left/Right Hand
Right
Measurement System
Letter
Drill Style
Jobber Drill
Decimal Equivalent
0.2340-0.4130
Aircraft Drill
No
Finish - Machining
Bright (Uncoated)
Coolant Fed
Non-Coolant Through
Drill Bit Point Type
Conventional Point
Number of Drill Bits
26
Primary Material Application
Aluminum, Cast Iron, Steel
Number of Flutes
2
Material - Machining
High Speed Steel
Shank Type - Machining
Straight
Flute Type
Spiral
Drill Bit Case Type
Metal Index
Primary Material Application ISO Code
K, N, P
Spiral Direction
Right Hand
Material Grade - Machining
General Purpose
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

The CLEVELAND C00939 is a jobber length drill bit set containing 26 high-speed steel bits ranging in size from A to Z. The bits have a straight shank and a right-hand spiral direction, with a radial point type for use in drilling applications. This set meets the dimensional/technical specifications associated with ASME B94.11M-1993 and DIN 338. It is intended for machining applications using aluminum, cast iron, and steel. It is supplied in a metal drill index case for storage in the included metal drill index case.

Key Features:

  • Includes 26 drill bits sized A through Z.
  • Jobber length design with overall lengths from 3 7/8 inches up to 5 1/4 inches.
  • Made of high-speed steel with a bright, uncoated finish.
  • Two-flute spiral with helix angles ranging from 21 to 34 degrees.
  • Radial point type with a conventional 118-degree point angle.
  • Straight shank type for compatibility with standard chucks.
  • Intended for drilling in aluminum, cast iron, and steel (as specified by the provided standards).
  • Meets the ASME B94.11M-1993 and DIN 338 technical specifications.
  • Has a right-hand spiral direction.
