15PC Q-Cobalt Wide Land Parabolic Jobber Dril Set Cleveland 2075 Straw HSS-CO RHS/RHC 1/16-1/2x1/32
- Mfr # C00901
- Zoro # G2827452
Key Features
Specifications
Details
- MFR #
- C00901
- Zoro #
- G2827452
- UPC #
- 697334009016
- Country of Origin
- United States
- Item
- Jobber Length Drill Bit Set
- Number of Pieces
- 15
- Cutting Direction
- Right Hand
- Drill Bit Point Angle
- 135 Degrees
- Drill Bit Material
- Cobalt
- Includes
- Metal Drill Index
- Drill Bit Grouping
- Drill Bit Set
- Standards
- ASME B94.11M-1993
- List Number
- 2075
- Point Type
- Split Point
- Shank Type
- Straight
- Flute Type
- Parabolic
- Drill Style
- Jobber Drill
- Measurement System
- Fractional Inch
- Left/Right Hand
- Right
- Drill Bit Point Type
- Split Point
- Primary Material Application
- All Materials
- Number of Drill Bits
- 15
- Material - Machining
- Cobalt
- Coolant Fed
- Non-Coolant Through
- Shank Type - Machining
- Straight
- Finish - Machining
- Straw/Bronze
- Aircraft Drill
- No
- Drill Bit Case Type
- Drill Index
Dimensions
- Shank Dia.
- 1/16 in
- Sizes Included
- 1/16",3/32",1/8",5/32",3/16",7/32",1/4",9/32",5/16",11/32",3/8",13/32",7/16",15/32",1/2"
- Drill Bit Size
- 1/16 in to 1/2 in by 32nds
- Drill Bit Dimension Type
- Fractional Inch
- Depth x Dia. Ratio
- 10xD
- Shank Length
- 1.25
- Shank Size
- 0.261
- Diameter
- 0.261
- Depth:Dia. Ratio
- 10xD
- Largest Drill Bit Size
- 1/2 in
- Smallest Drill Bit Size
- 1/16 in
- Drill Bit Sizes Included
- 1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
- Drill Length Class
- Jobber-Length
Description

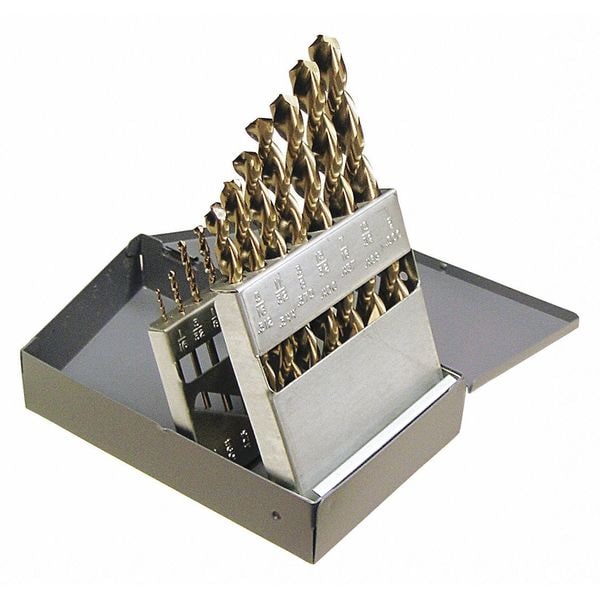

The CLEVELAND - C00901 is a 15-piece jobber length drill bit set made from cobalt, intended for drilling materials consistent with cobalt drill bit use; material compatibility depends on the workpiece and drilling conditions. It features right-hand cutting drill bits with split point tips with a 135-degree split point tip angle. The set includes fractional inch sizes ranging from 1/16 inch up to 1/2 inch, covering various common drilling needs. The drill bits feature parabolic flutes and a straight shank (approximately 0.261 inches diameter; 1.25 inches shank length) for stability and ease of use in typical drilling applications. The set comes housed in a metal drill index for organized storage.
Key Features:
- Contains 15 drill bits with sizes from 1/16" to 1/2" in fractional inch increments.
- Made of cobalt material.
- Jobber length design with a standard depth-to-diameter ratio of 10xD.
- 135-degree split point tip angle.
- Right-hand cutting direction drill bits.
- Parabolic flute design to aid chip removal.
- Straight shank (approximately 0.261 inches diameter; 1.25 inches shank length).
- Includes a metal drill index case for organized storage.
- Complies with standard ASME B94.11M-1993.
