Shop CLEVELAND

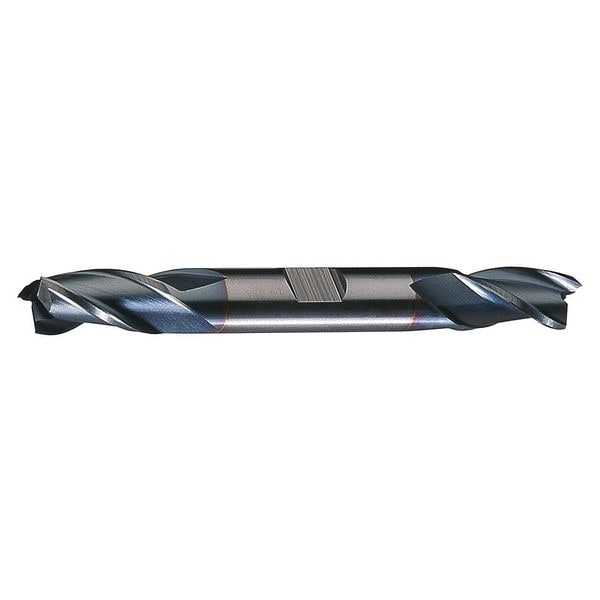

3-Flute HSS Center Cutting Square Double End Mill Cleveland HD-3-TC TiCN 1/8x3/8x3/8x3-1/16

  • Mfr # C39617
  • Zoro # G5905873
product price:
$
49.29
/ea

Key Features

Milling Diameter
1/8"
Number of Flutes
3
End Mill Style
Square
Finish
Ticn
Length of Cut
0.375 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
C39617
Zoro #
G5905873
UPC #
697334396178
Country of Origin
United States
Number of Flutes
3
End Mill Style
Square
Finish
Ticn
Item
Square End Mill
List Number
HD-3-TC
Helix Angle
30 Degrees
End Mill Cutting Type
Center Cutting
Grade
General Purpose
Cutting Direction
Right Hand
End Mill Material
High Speed Steel
Single End/Double End
Double
End Mill Application
Finishing
Shank Type - Machining
Weldon Flat
Drilling Tool Configuration
Individual
Measurement System
Inch
Material - Machining
High Speed Steel
Cutting Direction - Machining
Right Hand
Finish - Machining
TiCN
Material Grade - Machining
General Purpose
Primary Material Application
Cast Iron, Steel
Primary Material Application ISO Code
K, P
Chip-Breaker
Chip-Breaker Not Included
Max. Helix Angle
30 Degrees

Dimensions

Milling Diameter
1/8"
Length of Cut
0.375 in
Shank Dia.
3/8 in
Dimension Type
Fractional Inch
Milling Dia.
0.125 in
Overall Length
3 1/16 in
Corner Radius
3 1/16 in
Wire Rope Length
3 1/16 in
Length
3 1/16 in

Description

Square End Mill, 0.125 in Milling Dia., High Speed Steel, TiCN, Weldon Flat, Length of Cut 0.375 in, Overall Length 3 1/16 in, Shank Dia. 3/8 in, Neck Dia. Not Applicable
