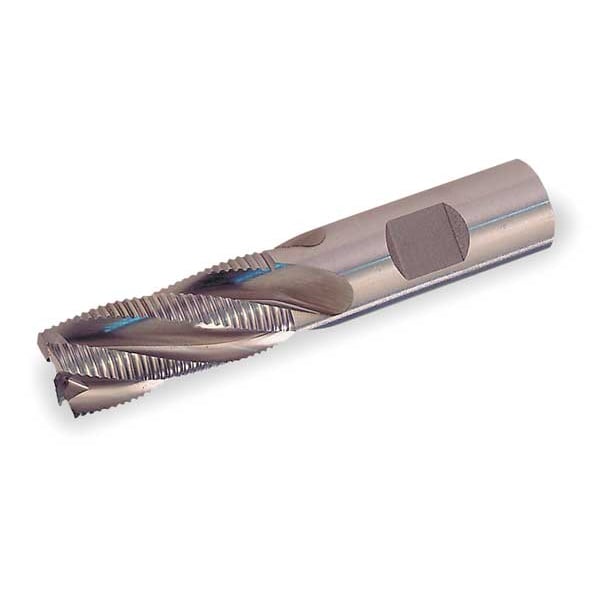

4-Flute Cobalt 8% Fine Square Single Roughing End Mill Cleveland RG6 Bright 5/8x5/8x1-5/8x3-3/4

  • Mfr # C30833

  • Zoro # G5970036

product price:
$
85.69
/ea

Key Features

Milling Diameter
5/8"
Length of Cut
1.625 in
Overall Length
3 3/4 in
Shank Dia.
5/8 in
Helix Angle
30 Degrees
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C30833
Zoro #
G5970036
UPC #
697334308331
Country of Origin
United States

Dimensions

Milling Diameter
5/8"
Length of Cut
1.625 in
Overall Length
3 3/4 in
Shank Dia.
5/8 in
Milling Dia.
0.625 in
Dimension Type
Fractional Inch
Corner Radius
0.000"
Wire Rope Length
3 3/4 in
Length
3 3/4 in

Details

Helix Angle
30 Degrees
List Number
RG6
End Mill Material
Cobalt
Cutting Direction
Right Hand
Grade
General Purpose
Item
Roughing End Mill
End Mill Cutting Type
Center Cutting
Finish
Bright (Uncoated)
End Mill Style
Square
Single End/Double End
Single
Number of Flutes
4
End Mill Application
Roughing
Material - Machining
Cobalt
Drilling Tool Configuration
Individual
Cutting Direction - Machining
Right Hand
Shank Type - Machining
Weldon Flat
Measurement System
Inch
Finish - Machining
Uncoated
Material Grade - Machining
General Purpose
Primary Material Application ISO Code
M, P
Primary Material Application
Stainless Steel, Steel
Chip-Breaker
Chip-Breaker Included
Pitch
Fine
Coolant Fed
Non-Coolant Through
Flute Type
Spiral
Secondary Material Application
Steel
Max. Helix Angle
30 Degrees
Secondary Material Application ISO Code
P
Flute Spacing
Fixed

Description

Roughing End Mill, 0.625 in Milling Dia., Cobalt, Uncoated, Non-Coolant Through, Weldon Flat, Length of Cut 1.625 in, Overall Length 3 3/4 in, Shank Dia. 5/8 in, Neck Dia. Not Applicable
