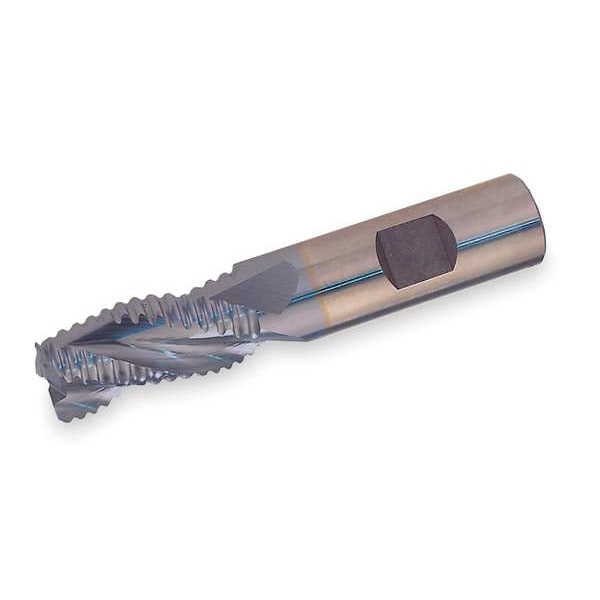

Cleveland 4-Flute Cobalt 8% Fine Square Single Roughing End Mill Cleveland RG6-TC TiCN 1/4x3/8x5/8x2-7/16 C30976 - main

4-Flute Cobalt 8% Fine Square Single Roughing End Mill Cleveland RG6-TC TiCN 1/4x3/8x5/8x2-7/16

  • Mfr # C30976

  • Zoro # G0843577

product price:  $57.19
/ea

Key Features

Milling Diameter
1/4"
Length of Cut
0.625 in
Overall Length
2 7/16 in
Shank Dia.
3/8 in
Helix Angle
30 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
C30976
Zoro #
G0843577
UPC #
697334309765
Country of Origin
United States

Dimensions

Milling Diameter
1/4"
Length of Cut
0.625 in
Overall Length
2 7/16 in
Shank Dia.
3/8 in
Dimension Type
Fractional Inch
Milling Dia.
0.25 in
Corner Radius
0.000"

Details

Helix Angle
30 Degrees
List Number
RG6-TC
End Mill Material
Cobalt
Finish
Ticn
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Item
Roughing End Mill
Number of Flutes
4
End Mill Style
Square
Grade
General Purpose
End Mill Application
Roughing
Cutting Direction
Right Hand
Shank Type - Machining
Weldon Flat
Measurement System
Inch
Drilling Tool Configuration
Individual
Material - Machining
Cobalt
Cutting Direction - Machining
Right Hand
Finish - Machining
TiCN
Material Grade - Machining
General Purpose
Primary Material Application ISO Code
M, P, S
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Chip-Breaker
Chip-Breaker Included
Pitch
Fine
Max. Helix Angle
30 Degrees
Flute Type
Spiral
Secondary Material Application ISO Code
S
Secondary Material Application
Nickel, Titanium
Coolant Fed
Non-Coolant Through
Flute Spacing
Fixed

Description

Roughing End Mill, 0.25 in Milling Dia., Cobalt, TiCN, Non-Coolant Through, Weldon Flat, Length of Cut 0.625 in, Overall Length 2 7/16 in, Shank Dia. 3/8 in, Neck Dia. Not Applicable
