Cleveland Controls

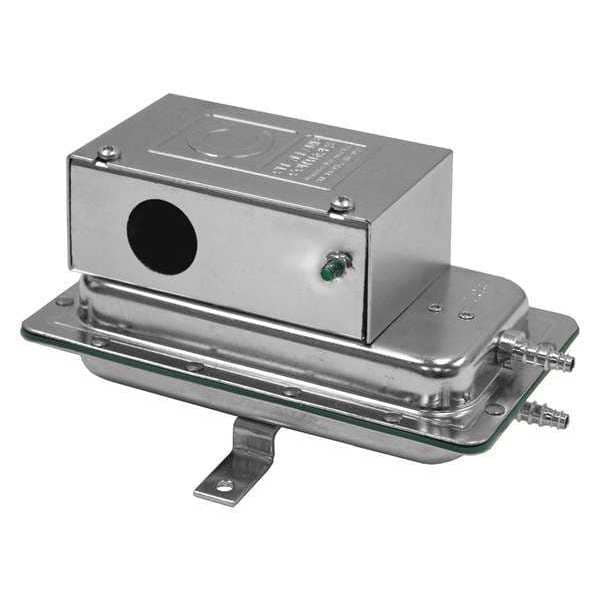

AirSwitch .05-2", WC, SPDT, AFS-262-112


product price: $42.19
/ea

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Electrical Rating 15 A Non-Inductive to 277V AC, 300 VA Pilot Duty @ 115 to 277V AC
  • Application Energy Management, HVAC
  • Contact Form SPDT
  • Maximum Differential Pressure Setting 0.1 in wc
  • Overall Height 6 1/8 in
See all product information

Product Information

Dimensions

Overall Height 6 1/8 in
Overall Width 3 1/4 in
Sample Line Connection Size 1/8 in, 1/4 in
Overall Depth 3 1/4 in

Details

Item Air Pressure Switch
Electrical Rating 15 A Non-Inductive to 277V AC, 300 VA Pilot Duty @ 115 to 277V AC
Application Energy Management, HVAC
Contact Form SPDT
Maximum Differential Pressure Setting 0.1 in wc
Sample Line Connector Type Barb
Maximum Pressure Setting 2 in wc
Minimum Operating Temperature -40 Degrees F
Input Voltage 277V AC
Minimum Pressure Setting 0.05 in wc
Reset Type Automatic Reset
Housing Material Steel
Standards CE Certified, CSA Certified, FM, UL Listed
Product Type Switch
Housing Type Conduit Box
Minimum Differential Pressure Setting 0.02 in wc
Mounting Orientation Vertical
Maximum Pressure Rating 0.5 psi
Maximum Operating Temperature 180 Degrees F
Electrical Connection Type Hardwired
Number of Switches 1
Pressure Type Differential, Negative, Positive
Pressure Setpoint Type Adjustable

Description

Air Pressure Switch, Application Energy Management, HVAC, Contact Form SPDT, Electrical Connection Type Hardwired, Electrical Rating 15 A Non-Inductive to 277V AC, 300 VA Pilot Duty @ 115 to 277V AC, Housing Material Steel, Housing Type Conduit Box, Input Voltage 277V AC, Maximum Differential Pressure Setting 0.1 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 0.5 psi, Maximum Pressure Setting 2 in wc, Minimum Differential Pressure Setting 0.02 in wc
