Cleveland Vibrator Co

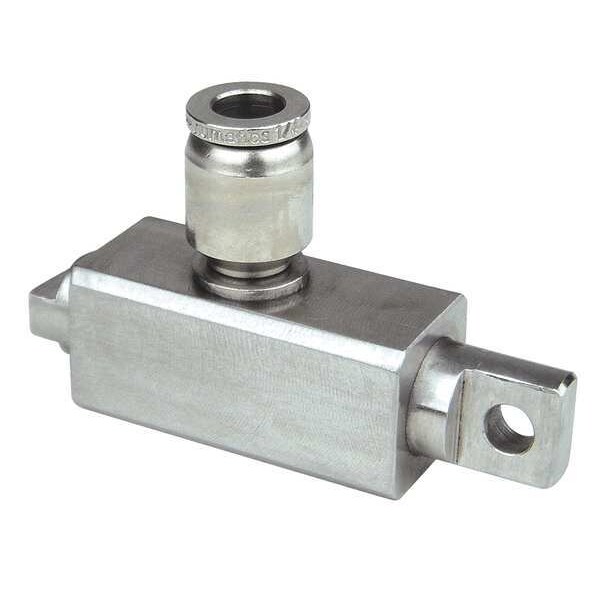

Pneumatic Vibrator, 15 lb, 16,000vpm, 80psi

product price: $289.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Piston
  • Force Rating 15 lb
  • CFM @ 80 PSI 2
  • Speed @ 60 psi 13,500 VPM
  • Overall Length 2-3/16"
See all product information

Product Information

Dimensions

Overall Length 2-3/16"
Overall Width 5/8"
Overall Height 1-1/4"
Inlet Connection Size 1/4 in
Outlet Connection Size #10-32 UNF

Details

Vibrator Type Piston
Item Pneumatic Vibrator
Force Rating 15 lb
CFM @ 80 PSI 2
Speed @ 60 psi 13,500 VPM
Speed @ 80 psi 16,000 VPM
dB @ 60 psi 95
Bin Weight Capacity 100 lb
dB @ 80 psi 95
Inlet Port 1/4" OD Hose
Outlet Port #10-32 UNF
Max. Temp. 200 F
Muffler 1EJX3
Duty Intermittent
Max. Pressure 80 psi
Mounting Universal
Housing Material 304 Stainless Steel
Includes Grade 5 Mounting Hardware (Mounting Fasteners, Push-Fit Hose Connection) and Manual
Application Manufacturing, Chemical Plants, Pharmaceutical, Packaging, Filling Machines, Parts Tracks
CFM @ 60 psi 2.3
Mounting Plate No
Vibration Speeds @ PSI 13,500 vpm @ 60 psi, 16,000 vpm @ 80 psi
Pneumatic Vibrator Type Piston
Mount Plate Required No
Maximum Bin Weight Capacity 100 lb
Series VM
Force @ PSI 15 lbf @ 80 psi
Maximum Force 15 lbf
Duty Cycle Intermittent
Housing Material Grade 304
Vibration Speed @ 60 psi 13,500 vpm
Maximum Vibration Speed 13,500 vpm
Force @ 80 psi 15 lbf
Mount Type End
Maximum Operating Temperature 200 Degrees F
Vibration Speed @ 80 psi 16,000 vpm
Maximum Inlet Pressure 80 psi
Weight 0.2 lb
Air Flow Rate 2 cfm @ 80 psi
Features Dual Diameter Piston Allows for Mounting at any Angle, Tight Tolerance Bore and Spring-Less Design
Sound Level 95 dBA
Mount Plate Included No
Inlet Connection Type Hose

Description

Piston Vibrator, Housing Material Stainless Steel, Outlet Connection Size #10-32 UNF, Air Flow Rate 2 cfm @ 80 psi, Maximum Force 15 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type Hose, Maximum Vibration Speed 13,500 vpm, Maximum Bin Weight Capacity 100 lb, Overall Height 0.94 in, Overall Length 2.19 in, Overall Width 0.5 in, Sound Level 95 dBA, Duty Cycle Intermittent, Pneumatic Vibrator Type Piston, Force @ PSI 15 lbf @ 80 psi, Mount Type End
