Cleveland Vibrator Co

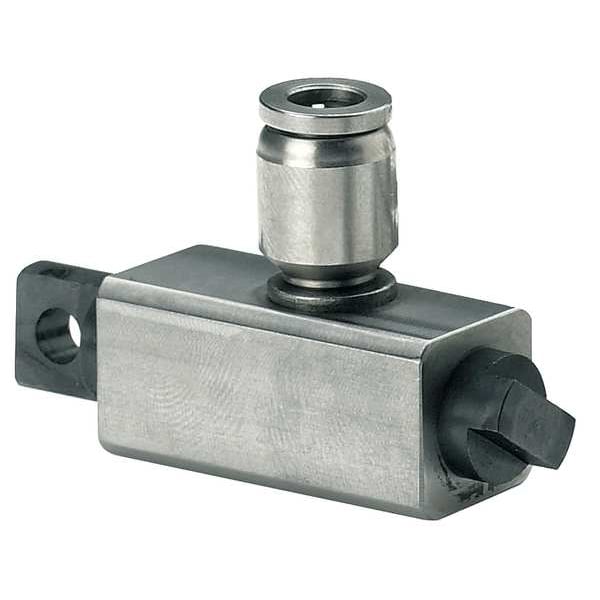

Pneumatic Vibrator, 21 lb, 11,400vpm, 80psi

product price: $179.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Piston
  • Force Rating 21 lb.
  • CFM @ 80 PSI 2.1
  • Speed @ 60 psi 10,600 VPM
  • Speed @ 80 psi 11,400 VPM
See all product information

Product Information

Dimensions

Overall Length 2-7/8"
Overall Width 5/8"
Overall Height 1-1/4"
Outlet Connection Size #10-32 UNF
Inlet Connection Size 1/4 in

Details

Item Pneumatic Vibrator
Vibrator Type Piston
Force Rating 21 lb.
CFM @ 80 PSI 2.1
Speed @ 60 psi 10,600 VPM
Speed @ 80 psi 11,400 VPM
dB @ 60 psi 100.5
dB @ 80 psi 101
Bin Weight Capacity 100 lb.
Inlet Port 1/4" OD Hose
Outlet Port #10-32 UNF
Muffler 1EJX3
Mounting Universal
Mounting Plate No
Duty Intermittent
CFM @ 60 psi 1.2
Application Manufacturing, Chemical Plants, Pharmaceutical, Packaging, Filling Machines, Parts Tracks
Max. Pressure 80 psi
Includes Grade 5 Mounting Hardware (Mounting Fasteners, Push-Fit Hose Connection) and Manual
Housing Material 304 Stainless Steel
Max. Temp. 200 F
Maximum Vibration Speed 10,600 vpm
Vibration Speeds @ PSI 10,600 vpm @ 60 psi, 11,400 vpm @ 80 psi
Series VM
Air Flow Rate 2.1 cfm @ 80 psi
Pneumatic Vibrator Type Piston
Force @ 80 psi 21 lbf
Duty Cycle Intermittent
Vibration Speed @ 80 psi 11,400 vpm
Features Dual Diameter Piston Allows for Mounting at any Angle, Tight Tolerance Bore and Spring-Less Design
Mount Plate Included No
Force @ PSI 21 lbf @ 80 psi
Vibration Speed @ 60 psi 10,600 vpm
Mount Plate Required No
Inlet Connection Type Hose
Weight 0.25 lb
Maximum Force 21 lbf
Maximum Bin Weight Capacity 100 lb
Maximum Inlet Pressure 80 psi
Mount Type End
Housing Material Grade 304
Sound Level 101dBA
Maximum Operating Temperature 200 Degrees F

Description

Piston Vibrator, Housing Material Stainless Steel, Outlet Connection Size #10-32 UNF, Air Flow Rate 2.1 cfm @ 80 psi, Maximum Force 21 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type Hose, Maximum Vibration Speed 10,600 vpm, Maximum Bin Weight Capacity 100 lb, Overall Height 1.25 in, Overall Length 2.88 in, Overall Width 0.63 in, Sound Level 101dBA, Duty Cycle Intermittent, Pneumatic Vibrator Type Piston, Force @ PSI 21 lbf @ 80 psi, Mount Type End
