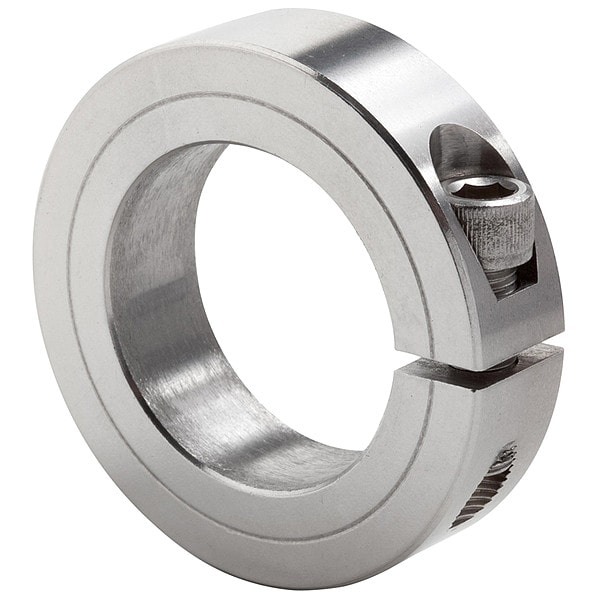

1C-237-S One-Piece Clamping Collar
Mfr # 1C-237-S
Zoro # G6427066
product price:Â
$
120.99
/ea
Free Shipping & Returns
Key Features
Number of Pieces
1
Collar Style
Clamp
Screw Size
5/16"-24 x 1"
Operating Temp. Range
-40 Degrees to 800 Degrees F
Screw Material
Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1C-237-S
- Zoro #
- G6427066
- UPC #
- 044861128329
- Country of Origin
- United States
Dimensions
- Screw Size
- 5/16"-24 x 1"
- Width Tolerance
- +0.005/-0.005 in
- Collar Outside Diameter
- 3 1/2 in
- Screw Thread Size
- 5/16"-24
- Clearance Diameter
- 3.75 in
- Bore Diameter
- 2 3/8 in
- For Shaft Diameter
- 2 3/8 in
- Screw Length
- 1 in
- Collar Width
- 3/4 in
Description
Shaft Collar, System of Measurement Inch, Bore Type Round, Bore Diameter 2 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 3 1/2 in, Inside Height to Flat Not Applicable, Clearance Diameter 3.75 in, Collar Width 3/4 in, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
