  11. CC-150-150 Metric One-Piece Clamping Coupling Recessed Screw

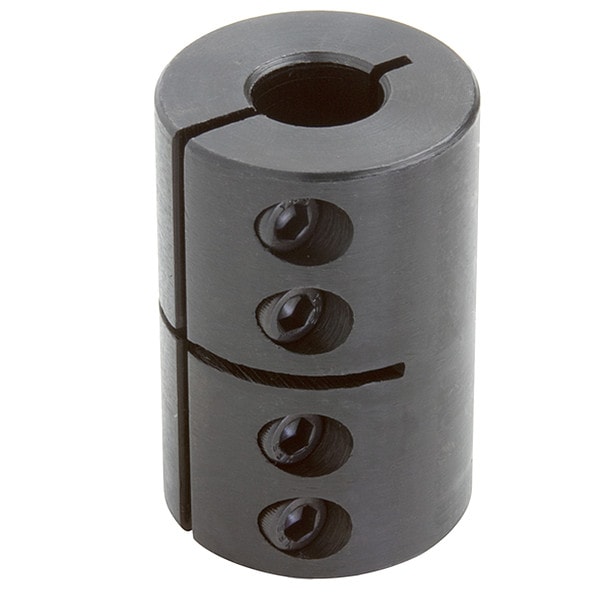

Climax Metal Products CC-150-150 Metric One-Piece Clamping Coupling Recessed Screw CC-150-150 - main

CC-150-150 Metric One-Piece Clamping Coupling Recessed Screw

  • Mfr # CC-150-150

  • Zoro # G7087437

product price: $76.89
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
Outside Dia.
2 1/2 in
Overall Length
3 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CC-150-150
Zoro #
G7087437
UPC #
044861403204
Country of Origin
United States

Dimensions

Bore Dia.
1 1/2 in
Outside Dia.
2 1/2 in
Overall Length
3 3/4 in
Screw Size (In.)
1/4-28 x 3/4
Screw Size
1/4"-28
Clearance Dia.
2.5 in
Clearance Dia. (In.)
2-1/2
Screw Thread Size
1/4"-28
Minimum Bore Diameter
1 1/2 in
Clearance Diameter
2.5 in
Maximum Bore Diameter
1 1/2 in
Bore Diameter 2
1 1/2 in
Coupling Outside Diameter
2 1/2 in
Bore Diameter 1
1 1/2 in
Different Bore Sizes
No

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
With Keyway / Without Keyway
Without Keyway
Finish
black oxide
Max. RPM
4,000 RPM
Material
Steel
Machined From
Bar Stock
Max. Torque (In.-Lbs.)
3700
Max. Torque
3,700 in-lb
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Type
One Piece Clamp Type, Without Keyway
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Design
(4) Socket Capscrews, Recessed Screws Provide an Outside Surface Free of Any Major Projections for Safety
Standards
Conflict Minerals and Materials Compliant, DFARS Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.003 in / -0.000 in
Screw Material
Carbon Steel
Features
Recessed Screws
Shaft Locking Type
Clamp On
Screw Material Finish
Black Oxide
Screw Material Grade
4140
Number of Locking Screws
4
Bore Type
Round
Zero Backlash
Yes
Maximum Speed
4,000 RPM
Coupling Material Grade
1211
Coupling Material
Carbon Steel
Coupling Construction
One-Piece
Included Screws
(4) Hex Socket Cap Screws
Maximum Torque
3,070 in-lb
Coupling Material Finish
Black Oxide

Description

Rigid Shaft Coupling, Bore Diameter 1 1 1/2 in, Bore Diameter 2 1 1/2 in, Bore Type Round, Clearance Diameter 2.5 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 2 1/2 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 1 1/2 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 1 1/2 in, Maximum Speed 4,000 RPM, Maximum Torque 3,070 in-lb
