Shop All Automotive Back Up Alarms
Code 3

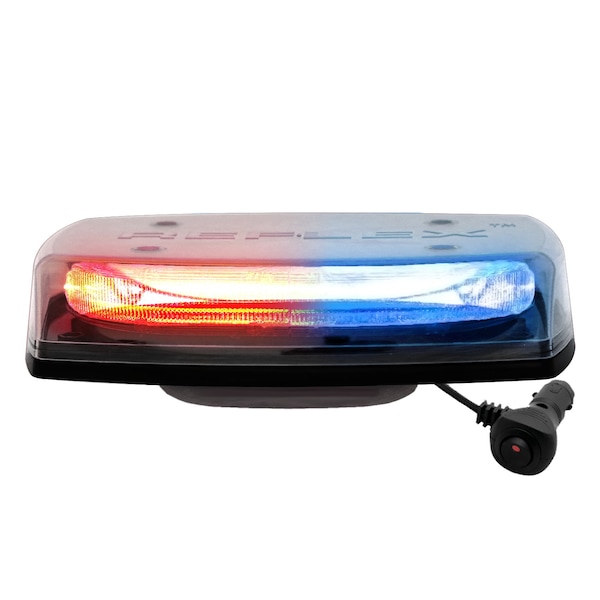

Mini Light Bar, LED, Magnetic/Suction

product price: $344.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Lamp Type Led
  • Voltage 12 to 24V DC
  • Lens Color Clear
  • Lighting Technology - Vehicle Lighting LED
  • Current Drawn 2.7 A
See all product information

Product Information

Dimensions

Height - Vehicle Lighting 2 13/64 in
Width - Vehicle Lighting 7 19/32 in
Length - Vehicle Lighting 11 in
Manufacturers Warranty Length 3 yr
Width 7-39/64"
Length 11"
Overall Height 2 3/16 in
Overall Length 10 7/8 in
Overall Depth 7 5/8 in

Details

Item Mini Light Bar
Lamp Type Led
Voltage 12 to 24V DC
Lens Color Clear
Lighting Technology - Vehicle Lighting LED
Current Drawn 2.7 A
Number of Flash Patterns - Vehicle Lighting 18
Color Clear/Red/Blue
Housing Material Polycarbonate
Wiring Connection - Vehicle Lighting Lighter Plug
Lens Color - Vehicle Lighting Blue, Red
Mounting Vacuum Magnet
Mounting - Vehicle Lighting Magnetic
Includes 15 ft Lighter Cord, On/Off Switch
Standards CA T13, R10, R65, RCM, RoHS Compliant
Number of Heads 4
Flashes per Minute Variable
Number of LEDs 48
Lamp Life 100,000 hr
Base Material Polycarbonate
Lens Material Polycarbonate
Light Type - Vehicle Lighting Flashing
Operating Temp. -22 Degrees to 122 Degrees F
Shape Rectangular
Power Source Corded
Lighting Technology LED
Number of Bulbs 48
Number of Flash Patterns 91
Minimum Operating Temperature -22 Degrees F
Wire Exit Bottom
Mount Style Surface
Vehicle Class 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Mount Type Suction
Light Pattern Flashing
Light Type Emergency Vehicle Mini Light Bar
Manufacturer Warranty 5 yr
Series C5550 Reflex
Compatible Vehicle Type Universal
Installation Location Roof
Electrical Connection Lighter Plug
Maximum Operating Temperature 122 Degrees F
Includes Electrical Connection Electrical Connection Included
Light Color Blue/Red
Current 3.4 A
Wattage 40.8 W
IP Rating IP65
Installation Type Removable
SAE Class Rating SAE J845 Class 1

Description

Mini Light Bar, Light Type Emergency Vehicle Mini Light Bar, Light Color Blue/Red, Wattage 40.8 W, Lens Color Clear, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J845 Class 1, Electrical Connection Lighter Plug, Lighting Technology LED, Installation Type Removable, Operating Voltage 12-24V DC, Overall Length 10 7/8 in, Overall Diameter Not Applicable, Overall Height 2 3/16 in, Overall Depth 7 5/8 in, IP Rating IP65, Compatible Vehicle Type Universal, Number of Heads 4
