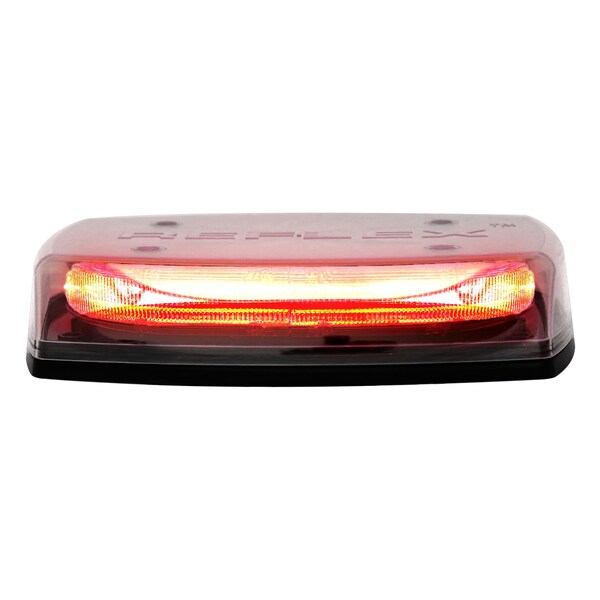

Mini Light Bar, LED, Permanent

  • Mfr # C5550CR

  • Zoro # G3773441


product price: $322.99
/ea
Free Shipping & Returns

Key Features

Color
Clear/Red
Includes
Gasket, Mounting Hardware
Number of Flash Patterns - Vehicle Lighting
18
Flashes per Minute
Variable
Manufacturers Warranty Length
3 yr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C5550CR
Zoro #
G3773441
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
3 yr
Width
7-39/64"
Length - Vehicle Lighting
11 in
Height - Vehicle Lighting
2 13/64 in
Width - Vehicle Lighting
7 19/32 in
Length
11"
Overall Height
2 3/16 in
Overall Depth
7 5/8 in
Overall Length
10 7/8 in

Details

Item
Mini Light Bar
Color
Clear/Red
Includes
Gasket, Mounting Hardware
Number of Flash Patterns - Vehicle Lighting
18
Flashes per Minute
Variable
Lamp Life
100,000 hr
Standards
CA T13, R10, R65, RCM, RoHS Compliant
Housing Material
Polycarbonate
Number of LEDs
48
Light Type - Vehicle Lighting
Flashing
Lens Color - Vehicle Lighting
Red
Lens Material
Polycarbonate
Current Drawn
2.7 A
Base Material
Polycarbonate
Lamp Type
Led
Mounting - Vehicle Lighting
Permanent
Lighting Technology - Vehicle Lighting
LED
Number of Heads
4
Voltage
12-24V DC
Wiring Connection - Vehicle Lighting
Pigtail
Lens Color
Clear
Mounting
Permanent
Operating Temp.
-22 Degrees to 122 Degrees F
Power Source
Corded
Lighting Technology
LED
Number of Flash Patterns
35
Shape
Rectangular
Number of Bulbs
48
Wattage
40.8 W
Includes Electrical Connection
Electrical Connection Included
Electrical Connection
Pigtail
Light Color
Red
Installation Location
Roof
Maximum Operating Temperature
122 Degrees F
Mount Style
Surface
Current
3.4 A
Vehicle Class
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Installation Type
Permanent
Mount Type
Bolt
Compatible Vehicle Type
Universal
IP Rating
IP65
Minimum Operating Temperature
-22 Degrees F
SAE Class Rating
SAE J845 Class 1
Manufacturer Warranty
5 yr
Light Pattern
Flashing
Series
C5550 Reflex
Wire Exit
Bottom
Light Type
Emergency Vehicle Mini Light Bar
Operating Voltage
12-24V DC

Description

Mini Light Bar, Light Type Emergency Vehicle Mini Light Bar, Light Color Red, Wattage 40.8 W, Lens Color Clear, Shape Rectangular, Light Pattern Flashing, SAE Class Rating SAE J845 Class 1, Electrical Connection Pigtail, Lighting Technology LED, Installation Type Permanent, Operating Voltage 12-24V DC, Overall Length 10 7/8 in, Overall Diameter Not Applicable, Overall Height 2 3/16 in, Overall Depth 7 5/8 in, IP Rating IP65, Compatible Vehicle Type Universal, Number of Heads 4
