Colder

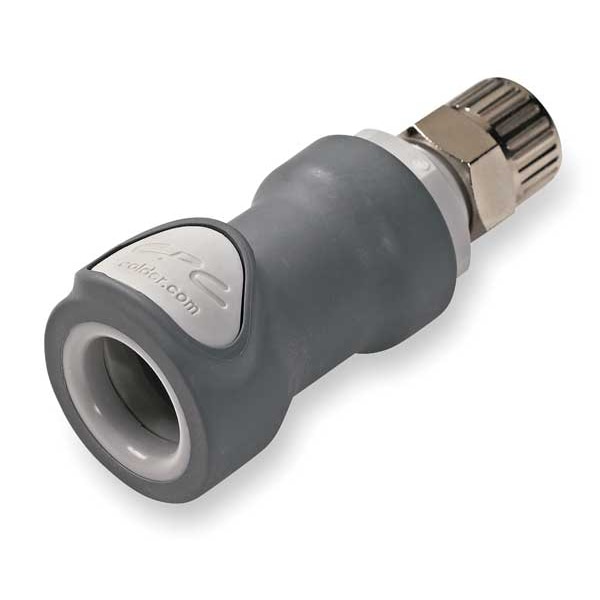

3/8" x 1/2" Tube Inline Coupler

product price: $28.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material ABS, Polypropylene
  • Specific Fitting Shape Straight Coupler
  • Fitting Connection Type Tube
  • Tube Size 1/2 in
  • Pipe Size - Pipe Fitting 3/8 in
See all product information

Product Information

Dimensions

Tube Size 1/2 in
Pipe Size - Pipe Fitting 3/8 in
Tube Inside Dia. 1/4 in
Pipe Size (Fittings) 3/8"
Body Dia. 1.05 in
Tube Outside Dia. 3/8 in
Length 2.45 in
Overall Length 2 7/16 in
Fitting Side B Tube Outer Diameter 3/8 in
Fitting Side B Tube Inner Diameter 1/4 in

Details

Item Inline Coupler
Tube Fitting Material ABS, Polypropylene
Specific Fitting Shape Straight Coupler
Fitting Connection Type Tube
Series NS212
Temp. Range 32 Degrees to 160 Degrees F
Basic Pipe Fitting Shape Coupling
Color Gray
Pipe Fitting Connection Type Tube
Straight-Through/Shut-Off Shut-Off
Max. Pressure 120 psi
Standards NSF/ANSI 51, RoHS
Basic Pipe Fitting Material Plastic
Specific Pipe Fitting Shape Inline Coupler
For Use With NS4 Inserts
Flow Control Type Shut-off
Application Air, Non-Potable Water
Maximum Operating Pressure 120 psi
Maximum Operating Temperature 160 Degrees F
Resistance Properties Chemical-Resistant
Fitting Side A Connection Type Coupler
Fitting Side B Connection Type Tube
Fitting Material Polypropylene
Minimum Operating Temperature 32 Degrees F

Description

Inline Coupler, Application Air, Non-Potable Water, Fitting Side A Connection Type Coupler, Fitting Side B Connection Type Tube, Fitting Side B Tube Inner Diameter 1/4 in, Flow Control Type Shut-off, Fitting Material Polypropylene, Overall Length 2 7/16 in, Specific Fitting Shape Straight Coupler, Fitting Side B Tube Outer Diameter 3/8 in, Standards NSF/ANSI 51, RoHS, Color Gray, Maximum Operating Pressure 120 psi, Maximum Operating Temperature 160 Degrees F
