  6. 3" X 1-1/4" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 200 lb
Colson 3" X 1-1/4" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 200 lb 2.03354.52 - main

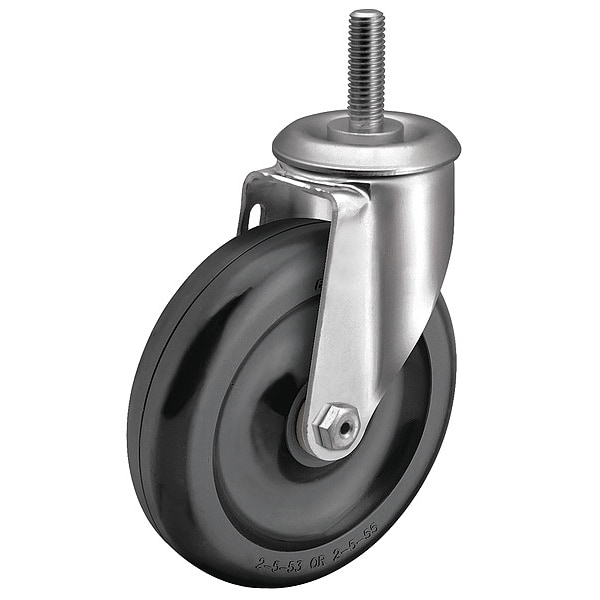

3" X 1-1/4" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 200 lb

  • Mfr # 2.03354.52

  • Zoro # G7812868

product price:  $18.59
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
4 in
Load Rating
200 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2.03354.52
Zoro #
G7812868
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
4 in
Stem Length
1-1/2 in
Thread Size
13UNC
Stem Dia.
1/2 in
Wheel Dia.
3 in
Caster Stem Size
1/2"-13 x 1 1/2 in

Details

Item
Premium General Institutional Threaded Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
200 lb
Load Rating Range
0 to 299 lb
Wheel/Tread Material
Polyolefin
Application
Store Fixtures, Stoage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Delrin
Wheel/Tread Hardness Rating
Hard
Number of Wheels
1
Wheel/Tread Hardness
70(±5) Shore D
Swivel Raceway Type
Double Ball
Wheel Core Type
Solid
Operating Temperature Range
-45°F to 180°F
Series
2
Frame Finish
Zinc
Core Color
Black
Caster Sub-Type
Swivel
Wheel/Tread Color
Black
Wheel Core Material
Solid
Caster Mounting Type
Stem
Caster Product Group
Swivel Caster
System of Measurement
Inch
Operating Temperature - Maximum
180 Degrees F
Number of Mounting Holes
0
Operating Temperature - Minimum
-45 Degrees F
For Surface Type
Asphalt, Ceramic, Grease, Oil, Steel
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
250 lb

Description

Stem Caster, Swivel Caster, 250 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 1/4 in Wheel Width, Polypropylene Wheel/Tread Material, 4 in Mounting Height, Ball, 1/2 In.-13 x 1 1/2 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
