Shop COLSON

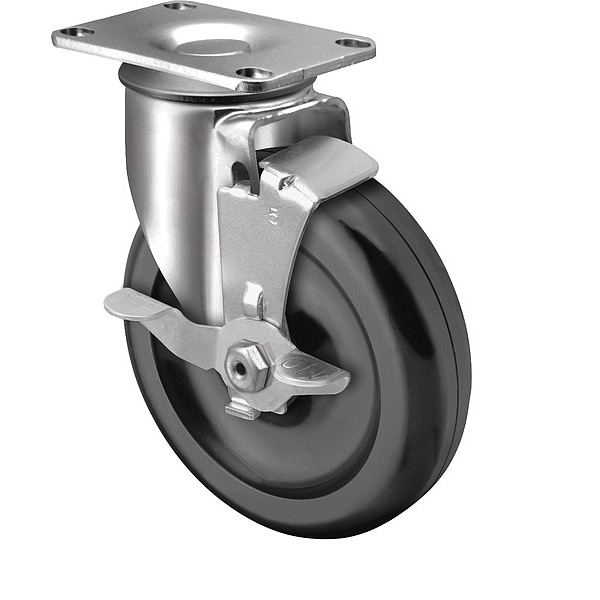

4" X 1-1/4" Non-Marking Polyolefin Swivel Caster, Side Brake, Loads Up To 275 lb

  • Mfr # 2.04256.55 BRK1

  • Zoro # G7810320

product price:
$
39.79
/ea

Key Features

Application
Store Fixtures, Stoage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Number of Wheels
1
Wheel Core Type
Solid
Non-Marking
Yes
Wheel Core Material
Polyolefin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2.04256.55 BRK1
Zoro #
G7810320
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Wheel Dia.
4 in
Mounting Height
5 1/8 in
Swivel Radius
3 11/16 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
For Axle Dia.
3/8 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Width
2 1/2 in
Mounting Plate Length
3 5/8 in
Inside Slot Spacing - Length
2.813 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
5/32 in

Details

Application
Store Fixtures, Stoage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Number of Wheels
1
Wheel Core Type
Solid
Non-Marking
Yes
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Hard
Caster Brake Type
Side Brake
Frame Finish
Zinc Plated
Item
Plate Caster
Inside Bolt Hole Spacing
1 3/4 in x 2 13/16 in
Load Rating Range
0 to 299 lb
Includes Thread Guards
No
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyolefin
Operating Temperature Range
-45 Degrees to 180 Degrees F
Core Color
Black
Series
2
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Tread Shape
Standard
System of Measurement
Inch
Load Rating
275 lb
Caster Plate Hole Pattern
C
Outside Bolt Hole Spacing
1 3/4 in x 3 13/16 in
Load Capacity - Maximum
275 lb
Wheel Hardness Rating
70 Shore D
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Brake Location
Left Side
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
