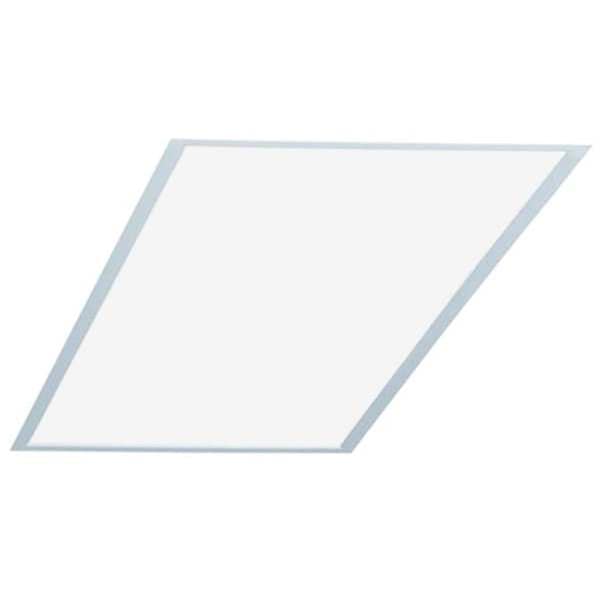

Columbia Lighting Edge Lit LED Flat Panel, 2 ft W x 4 ft L, CFP24-55/41/3440

Edge Lit LED Flat Panel, 2 ft W x 4 ft L, (Discontinued)

  • Mfr # CFP24-55/41/3440
  • Zoro # G0194969
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CFP24-55/41/3440
Zoro #
G0194969
UPC #
078531141004
Country of Origin
China

Dimensions

Nominal Size - Fixtures
2 ft x 4 ft
Height
1 5/8 in
Width
23 13/16 in
Length
47 13/16 in
Overall Width
23 7/8 in
Overall Length
47 7/8 in
Nominal Size
2 ft x 4 ft
Overall Height
1 5/8 in

Details

Item
Edge Lit LED Flat Panel
Fixture Item
Flat Panel
Voltage
120/277V AC
Lighting Technology
LED
Lighting Certification
DesignLights Consortium (DLC)
Lamp Type - Fixtures
Integrated LED
Dimmable
Yes
Lumens
3,400 lm, 4,100 lm, 5,500 lm
Color Temperature
4000K
Color Rendering Index
80
Max. Fixture Wattage
50 W
Lumens Per Watt
122.0 to 128.0
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Warranty
5 yr
Rated Life
54,000 hr
Standards
cULus Listed, IC Rated, UL 924
Fixture Rated Life
60,000 hr
Lumens per Watt
122 lm/W, 125 lm/W, 128 lm/W
Fixture Voltage
100 to 277
Emergency Back Up Battery
No
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Listed
Emergency Battery Backup
No
Temp. Range
-20 Degrees C to 40 Degrees C
Series
CFP
LED Replacement For
2 Lamp T8, 3 Lamp T8
Min. Ambient Temp.
-4 Degrees F
Light Technology
LED
Max. Ambient Temp.
104 Degrees F
Lens Shape
Flat
Dimming Method
0-10V
For Bulb Type
Integrated LED
Dimming Range
100% to 10%
Sensor Type
No Sensor
Mounting Style
Ceiling

Description

2 ft x 4 ft, Lens Shape Flat, 4000K, 3,400 lm, 4,100 lm, 5,500 lm, 122 lm/W, 125 lm/W, 128 lm/W, LED, LED Replacement For 2 Lamp T8, 3 Lamp T8, Sensor Type No Sensor, Max. Fixture Wattage 50 W, Color Rendering Index 80, 120/277V AC, Lighting Certification DesignLights Consortium (DLC), Dimmable Yes, Emergency Battery Backup No, CFP
