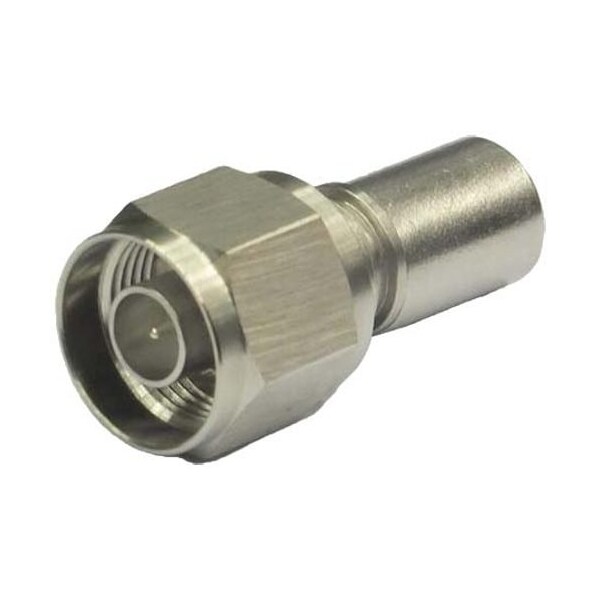

Replacement for Commscope 400bpnm-c-cr
Mfr # 400BPNM-C-CR COMMSCOPE
Zoro # G902952633
product price:Â $34.99
/eaKey Features
Length
39.05 mm | 1.537 in
Width
20.25 mm | 0.797 in
dc Test Voltage
2500 V
Body Style
Straight
Inner Contact Plating
Silver
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 400BPNM-C-CR COMMSCOPE
- Zoro #
- G902952633
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length
- 39.05 mm | 1.537 in
- Width
- 20.25 mm | 0.797 in
- Nominal Size
- 0.405 in
- Diameter
- 20.25 mm | 0.797 in
Details
- dc Test Voltage
- 2500 V
- Body Style
- Straight
- Inner Contact Plating
- Silver
- Connector Retention Tensile Force
- 330 N | 74.187 lbf
- Interface Durability
- 500 cycles
- Peak Power maximum
- 10 kW
- Cable Impedance
- 50 ohm
- Product Series
- CNT-400
- Connector Impedance
- 50 ohm
- Coupling Nut Proof Torque
- 8 N-m | 70.806 in lb
- Coupling Nut Retention Force
- 450 N | 101.164 lbf
- Connector Retention Torque
- 0.56 N-m | 4.956 in lb
- Interface
- N Male
- Operating Frequency Band
- 0 - 6000 MHz
- Insulation Resistance minimum
- 5000 mOhm
- Operating Temperature
- -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature
- -65 °C to +125 °C (-85 °F to +257 °F)
- Outer Contact Plating
- Trimetal
Description
Replacement for Commscope 400bpnm-c-cr
