Shop CONCENTRIC INTERNATIONAL

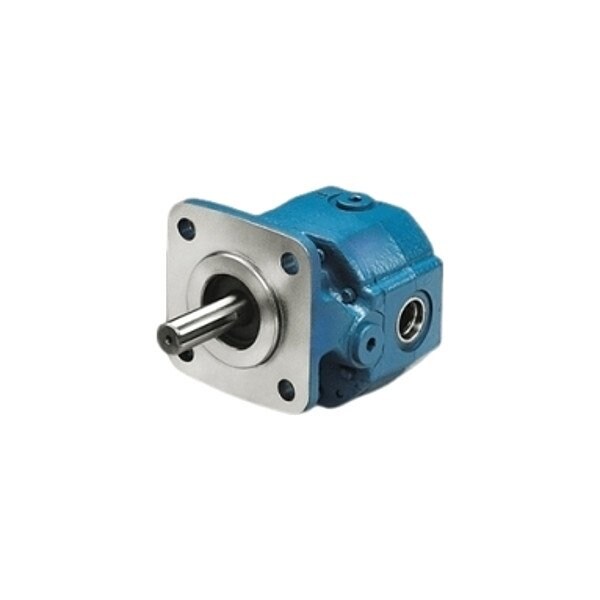

HydraulicGearPump, 1,900psi, 5gpm, CastIron

  • Mfr # 1300097

  • Zoro # G422706198


product price:
$
212.99
/ea
Free Shipping & Returns

Key Features

Wire Rope Length
3.66 in
Series
GC
Key Length
1/8 in
Housing Material
Cast Iron
Displacement per Revolution
0.32 cu in/rev
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1300097
Zoro #
G422706198
UPC #
-
Country of Origin
United States

Dimensions

Wire Rope Length
3.66 in
Key Length
1/8 in
Shaft Length
1 1/2 in
Discharge Connection Size
3/4"-16
Media Intake Connection Size
7/8"-14
Overall Height
2.81 in
Overall Width
2.81 in
Shaft Outer Diameter
1/2 in
Mounting Flange Size
SAE 4F17
Overall Length
3.66 in
Length
3.66 in

Details

Item
Hydraulic Gear Pump
Series
GC
Housing Material
Cast Iron
Displacement per Revolution
0.32 cu in/rev
Number of Stages
1
Discharge Connection Type
SAE
Key Shape
Straight
Oil Temperature - Maximum
200 Degrees F
Media Intake Connection Type
SAE
Rotation
CW/CCW
Shaft Type
Keyed
Rated Speed
4,000 RPM
Flow Rate - Maximum
5 gpm
Flow Rate - Minimum
2.5 gpm
Product Type
Hydraulic Gear Pump
Continuous Pressure - Maximum
1,900 psi
Hydraulic Pressure Port Location
Side
Motor Speed - Maximum
4,000 RPM

Description

Hydraulic Gear Pump, Displacement per Revolution 0.32 cu in/rev, Media Intake Connection Size 7/8 In.-14, Discharge Connection Size 3/4 In.-16, Motor Speed - Maximum 4,000 RPM, Shaft Type Keyed, Rotation CW/CCW, Housing Material Cast Iron, Flow Rate - Maximum 5 gpm, Flow Rate - Minimum 2.5 gpm, Hydraulic Pressure Port Location Side, Media Intake Connection Type SAE, Oil Temperature - Maximum 200 Degrees F, Overall Height 2.81 in, Overall Length 3.66 in, Overall Width 2.81 in
