Shop CONDOR USA

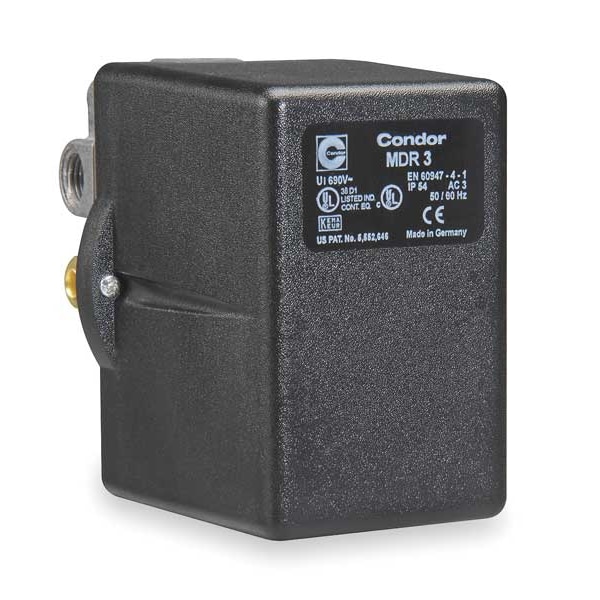

Pressure Switch, Standard, 3PST, 4 Ports, 3/8" FNPT, 1/4" FNPT, 40 to 360 psi Range

  • Mfr # 31UGXEXX

  • Zoro # G0650176

product price:
$
95.59
/ea

Key Features

Action
Standard
Contact Form
3PST
Number of Pressure Connection Ports
4
Pressure Connection Type
3/8" FNPT, (3) 1/4" FNPT
Range
40 to 360 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
31UGXEXX
Zoro #
G0650176
UPC #
-
Country of Origin
Poland
Item
Pressure Switch
Action
Standard
Contact Form
3PST
Number of Pressure Connection Ports
4
Pressure Connection Type
3/8" FNPT, (3) 1/4" FNPT
Range
40 to 360 psi
Factory On Setting
310 psi
Factory Off Setting
360 psi
Standards
CSA and CE Certified, UL Listed
Temp. Range
-22 Degrees to 257 Degrees F
Pressure Switch Port Type
(1) 3/8 in FNPT, (3) 1/4 in FNPT, (4) Port
AC Contact Rating
30A @ 240V
Pressure Switch Application
Air Compressor
Pressure Switch Differential
40 to 105 psi
Pressure Switch Electrical Contact Form
3PST
Pressure Switch Range
40 to 360 psi
Pressure Switch Unloader
1/4 in Compression
Pressure Switch Factory On/Off Setting
310/360 psi
Special Features
35 Bar Maximum Cut-Out Pressure, 7.5 (11) kW Switching Capacity
Series
MDR3
Manual Switch Action
None
Phase
Single/Three
Product Type
Water and Air Pressure Switch
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Pressure - Minimum
40 psi
Differential Pressure - Minimum
40 psi
Pressure - Maximum
360 psi
Actuator Style
Diaphragm
Differential Pressure - Maximum
105 psi
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 480V AC
15 hp
Switch Function Configuration
None
Horsepower @ Single Phase - 240V AC
5 hp
Operating Temperature - Maximum
257 Degrees F
NEMA Enclosure Rating
1
Unloader
1/4 in Compression Unloader Included
Operating Temperature - Minimum
-22 Degrees F
Pressure Switch Action Type
Standard
Compatible Media
Compressed Air, Liquid
Proof Pressure
870 psi
Switch Structure
3PST
IP Rating
IP54
Electrical Connection
Screw-Clamp Terminal
Deadband Adjustability
Adjustable

Description

Pressure Switch, Air Compressor, Manual Switch Action None, (1) 3/8 in FNPT, (3) 1/4 in FNPT, (4) Port, Pressure Switch Factory On/Off Setting 310/360 psi, 1/4 in Compression Pressure Switch Unloader, Pressure Switch Differential 40 to 105 psi, Pressure Switch Range 40 to 360 psi, Pressure Switch Electrical Contact Form 3PST, Pressure Switch Action Standard, NEMA Rating 1, Series MDR3, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 5 hp, HP @ 3 Phase - 240V 7 1/2 hp, HP @ 3 Phase - 480V 15 hp
