  6. Incandescent, LED Photocontrol, 2,000 W, Gray, 3 sec Max, 2 sec Min

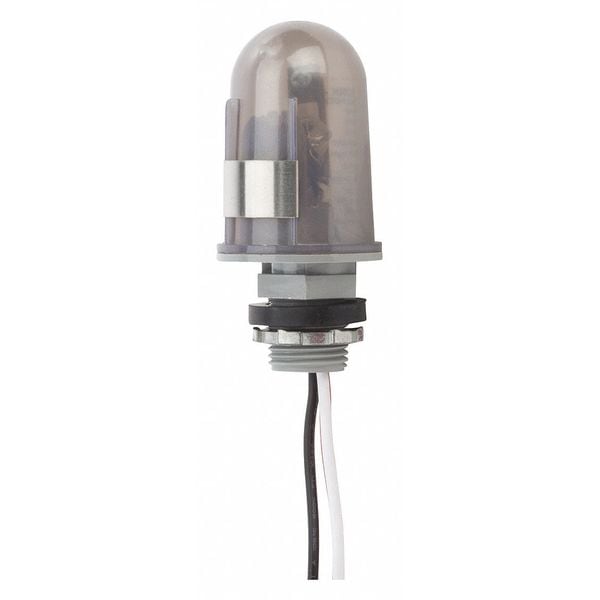

Nsi Tork Incandescent, LED Photocontrol, 2,000 W, Gray, 3 sec Max, 2 sec Min 2000 - main

Incandescent, LED Photocontrol, 2,000 W, Gray, 3 sec Max, 2 sec Min

  • Mfr # 2000

  • Zoro # G0682631

product price:  $12.19
/ea

Key Features

Compatible Lighting
Incandescent, LED
AC Operating Voltage
120V AC
Ballast Current - Maximum
0.416666667
Incandescent Current - Maximum
16.7 A
Wattage - Maximum
2,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2000
Zoro #
G0682631
UPC #
786261600172
Country of Origin
China

Dimensions

Depth
1 5/8 in
Manufacturers Warranty Length
5 yr
Width
1 5/8
Length
3 1/2 in
Overall Height
3.5 in
Stem Thread Size
1/2''
Stem Diameter
1/2 in

Details

Item
Photocontrol
Compatible Lighting
Incandescent, LED
AC Operating Voltage
120V AC
Ballast Current - Maximum
0.416666667
Incandescent Current - Maximum
16.7 A
Wattage - Maximum
2,000 W
Foot Candles On
1.0 to 5.0
Time Delay - Maximum
3 sec
Foot Candles Off
3 to 15
Time Delay - Minimum
2 sec
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 140 Degrees F
Body Color
Gray
Setting
Dusk to Dawn
Standards
cULus
Contact Form
SPST
Includes
Gasket, Lock Nut
Description/Special Features
Built-In Delay of Up to 2 min Prevents False Switching, LED Rated
For Use With
Decorative Lighting, Flood and Patio Lamp
Enclosure Type
Raintight
Series
2000
Off Illumination - Minimum
3 fc
Operating Temperature - Minimum
-40 Degrees F
On Illumination - Maximum
5 fc
Operating Temperature - Maximum
140 Degrees F
Features
Translucent Dome
Mounting Style
1/2 in Conduit, Stem
Off Illumination - Maximum
15 fc
Resistance Properties
Tamper Resistant
On Illumination - Minimum
1 fc

Description

Photocontrol, Mounting 1/2 in Conduit, Fixed, Voltage 120V AC, Max. Wattage 2,000, Max. Incandescent Amps 16.7 A, Max. Ballast Amps 15 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 140 Degrees F, Length 3 1/2 in, Width 1 5/8, Depth 1 5/8 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards cULus, Includes Gasket, Lock Nut
