Shop CONDOR USA

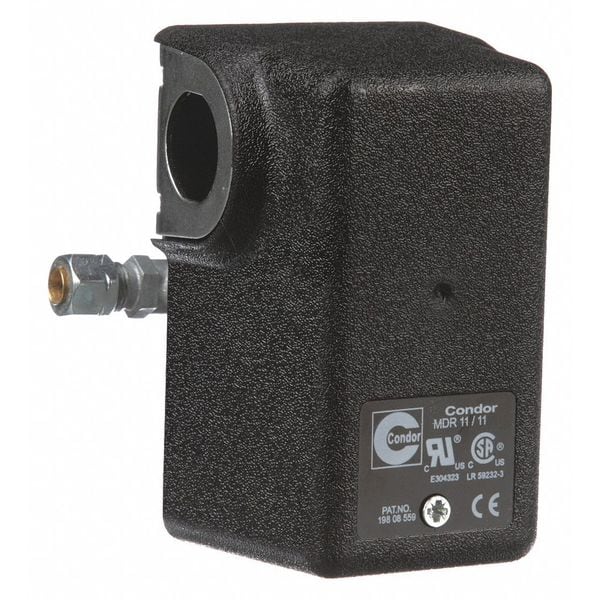

Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPT, 20 to 105 psi Range

  • Mfr # 11EAXE

  • Zoro # G0996177

product price:
$
24.69
/ea

Key Features

Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPT
Range
20 to 105 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
11EAXE
Zoro #
G0996177
UPC #
-
Country of Origin
China
Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPT
Range
20 to 105 psi
Factory On Setting
80 psi
Factory Off Setting
100 psi
Standards
CSA Certified, UL Listed
Pressure Switch Range
20 to 105 psi
Pressure Switch Electrical Contact Form
DPST
Pressure Switch Factory On/Off Setting
80/100 psi
Pressure Switch Differential
20 to 45 psi
Pressure Switch Unloader
1/4 in Compression
Series
MDR11
Manual Switch Action
None
Pressure Switch Application
Air Compressor
Temp. Range
-22 Degrees to 257 Degrees F
Pressure Switch Port Type
(1) Port, 1/4 in FNPT
AC Contact Rating
26A @ 240V
Special Features
11 Bar/160 psi Maximum Cut-Out Pressure, 4 kW/4 hp Switching Capacity
Phase
Single
Product Type
Water and Air Pressure Switch
Horsepower @ Single Phase - 240V AC
3 hp
Pressure - Minimum
20 psi
Pressure - Maximum
105 psi
Actuator Style
Diaphragm
Horsepower @ Single Phase - 120V AC
2 hp
Switch Function Configuration
None
Differential Pressure - Maximum
45 psi
Differential Pressure - Minimum
20 psi
Operating Temperature - Maximum
257 Degrees F
Pressure Switch Action Type
Standard
Unloader
1/4 in Compression Unloader Included
Operating Temperature - Minimum
-22 Degrees F
NEMA Enclosure Rating
1
IP Rating
IP44
Deadband Adjustability
Adjustable
Compatible Media
Compressed Air, Liquid
Proof Pressure
500 psi
Electrical Connection
Screw-Clamp Terminal
Switch Structure
DPST

Description

Pressure Switch, Air Compressor, Manual Switch Action None, (1) Port, 1/4 in FNPT, Pressure Switch Factory On/Off Setting 80/100 psi, 1/4 in Compression Pressure Switch Unloader, Pressure Switch Differential 20 to 45 psi, Pressure Switch Range 20 to 105 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Standard, NEMA Rating 1, Series MDR11, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, Temp. Range -22 Degrees to 257 Degrees F, Standards CSA Certified, UL Listed
