  13. Pressure Switch, Standard, DPST, 1 Ports, 1/4" NPT, 40 to 175 psi Range

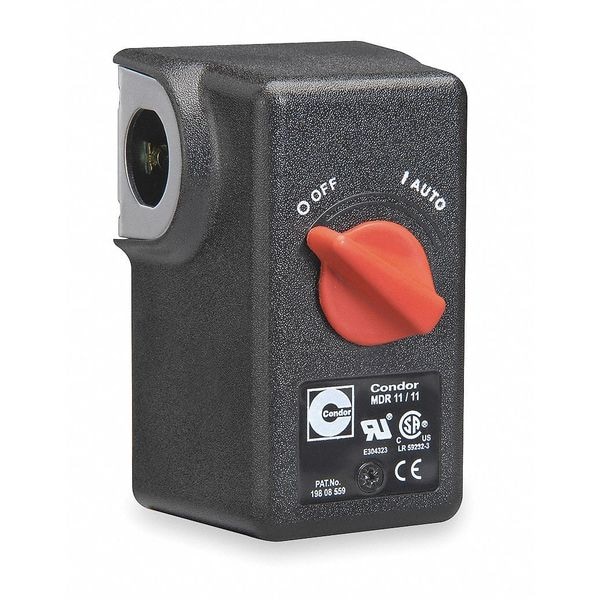

Condor Usa Pressure Switch, Standard, DPST, 1 Ports, 1/4" NPT, 40 to 175 psi Range 11KA2X - main

Pressure Switch, Standard, DPST, 1 Ports, 1/4" NPT, 40 to 175 psi Range

  • Mfr # 11KA2X

  • Zoro # G1895101

product price: $22.85
/ea

Key Features

Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" NPT
Range
40 to 175 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11KA2X
Zoro #
G1895101
UPC #
-
Country of Origin
China

Dimensions

Manufacturer Warranty Length
1 yr

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" NPT
Range
40 to 175 psi
Factory On Setting
140 psi
Factory Off Setting
175 psi
Standards
CSA Certified, UL Listed
Pressure Switch Range
40 to 175 psi
Pressure Switch Application
Air Compressor
Manual Switch Action
Auto/Off
Pressure Switch Unloader
No
Pressure Switch Factory On/Off Setting
140/175 psi
Temp. Range
-22 Degrees to 257 Degrees F
Special Features
11 Bar/160 psi Maximum Cut-Out Pressure, 4 kW/4 hp Switching Capacity
Pressure Switch Electrical Contact Form
DPST
Pressure Switch Port Type
(1) Port, 1/4 in FNPT
Series
MDR11
Pressure Switch Differential
30 to 65 psi
AC Contact Rating
26A @ 240V
Phase
Single
Product Type
Water and Air Pressure Switch
Actuator Style
Diaphragm
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Single Phase - 240V AC
3 hp
Pressure - Minimum
40 psi
Differential Pressure - Minimum
30 psi
Pressure - Maximum
175 psi
Switch Function Configuration
Auto/Off
Differential Pressure - Maximum
65 psi

Description

Pressure Switch, Air Compressor, Manual Switch Action Auto/Off, (1) Port, 1/4 in FNPT, Pressure Switch Factory On/Off Setting 140/175 psi, No Pressure Switch Unloader, Pressure Switch Differential 30 to 65 psi, Pressure Switch Range 40 to 175 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Standard, NEMA Rating 1, Series MDR11, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, Temp. Range -22 Degrees to 257 Degrees F, Standards ISO 9001
