  13. Pressure Switch, Standard, DPST, 4 Ports, 1/4" FNPT, 20 to 105 psi Range

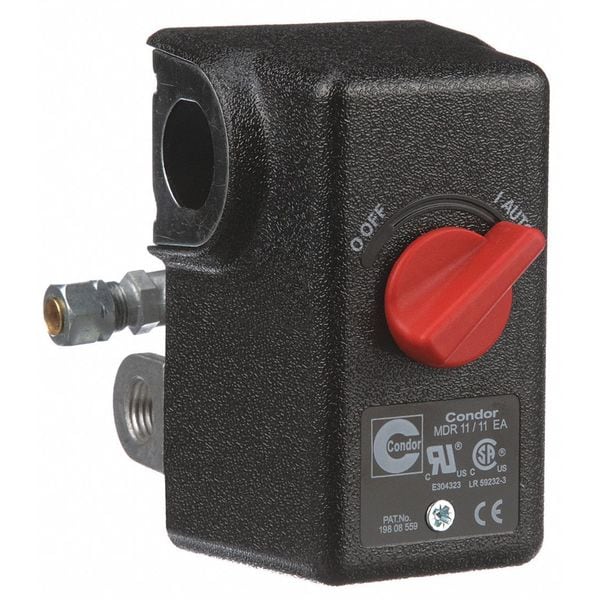

Condor Usa Pressure Switch, Standard, DPST, 4 Ports, 1/4" FNPT, 20 to 105 psi Range 11EC2E - main

CAD Drawings

Download CAD Files

Pressure Switch, Standard, DPST, 4 Ports, 1/4" FNPT, 20 to 105 psi Range

  • Mfr # 11EC2E

  • Zoro # G1230187

CAD Available
product price: $27.69
/ea

Key Features

CAD Drawing
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
4
Pressure Connection Type
1/4" FNPT
Range
20 to 105 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11EC2E
Zoro #
G1230187
UPC #
-
Country of Origin
China

Dimensions

Manufacturer Warranty Length
1 yr

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
4
Pressure Connection Type
1/4" FNPT
Range
20 to 105 psi
Factory On Setting
80 psi
Factory Off Setting
100 psi
Standards
CSA Certified, UL Listed
Manual Switch Action
Auto/Off
Special Features
11 Bar/160 psi Maximum Cut-Out Pressure, 4 kW/4 hp Switching Capacity
AC Contact Rating
26A @ 240V
Pressure Switch Range
20 to 105 psi
Pressure Switch Port Type
(4) Port, 1/4 in FNPT
Pressure Switch Electrical Contact Form
DPST
Series
MDR11
Pressure Switch Application
Air Compressor
Pressure Switch Differential
20 to 45 psi
Pressure Switch Unloader
1/4 in Compression
Temp. Range
-22 Degrees to 257 Degrees F
Pressure Switch Factory On/Off Setting
80/100 psi
Phase
Single
Product Type
Water and Air Pressure Switch
Pressure - Minimum
20 psi
Horsepower @ Single Phase - 240V AC
3 hp
Differential Pressure - Maximum
45 psi
Actuator Style
Diaphragm
Horsepower @ Single Phase - 120V AC
2 hp
Pressure - Maximum
105 psi
Switch Function Configuration
Auto/Off
Differential Pressure - Minimum
20 psi
CAD Available
Yes

Description

Pressure Switch, Air Compressor, Manual Switch Action Auto/Off, (4) Port, 1/4 in FNPT, Pressure Switch Factory On/Off Setting 80/100 psi, 1/4 in Compression Pressure Switch Unloader, Pressure Switch Differential 20 to 45 psi, Pressure Switch Range 20 to 105 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Standard, NEMA Rating 1, Series MDR11, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, Temp. Range -22 Degrees to 257 Degrees F, Standards ISO 9001
