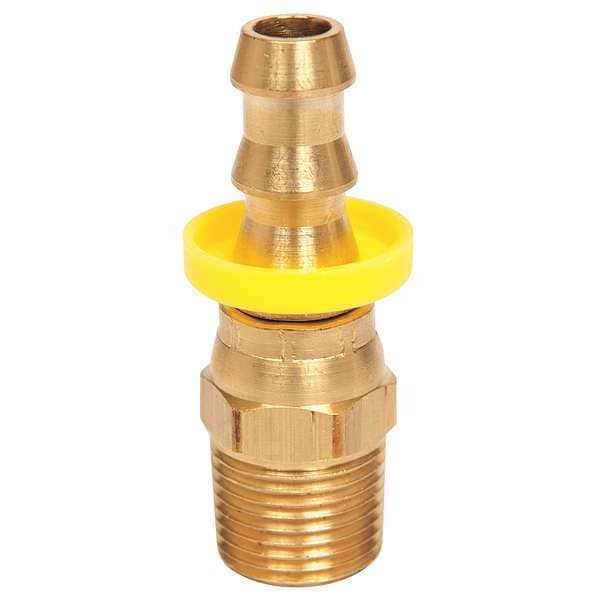

Hose Fitting, 1/4 In. ID, 1/4-18, (M)NPT

The CONTINENTAL - PB-NPMX-0404 is a Push-On Hose Fitting designed to provide a connection based on the compatibility scale between different components of the system. With a hose barb and NPTF connection type, the fitting is rated for operation within the specified pressure range. Fabricated using brass as its primary construction material, it allows a degree of rotation for positioning and installation based on the swivel property. Its straight design aids in the efficient routing of the hose lines.

Key Features:

• Barb Size: Measures 1/4 in, identifying the compatibility range for attaching the barb into the hose.
• Fitting Connection Type: Features a Hose Barb x NPTF type which implies a connection through a barbed end to a hose and with a tapered pipe thread end (NPTF) for a leak-proof joint.
• Fitting Material: Built with Brass x Brass, this gives it corrosion resistance and conductivity, thus enhancing durability and long-term usability.
• Fitting Movement: Demonstrates a Swivel property which allows the fitting to rotate or swing around, providing flexibility and adjustment during installation.
• Fitting Size: Sizing is 1/4 in x 1/4 in, indicative of the dimensions for compatibility with corresponding hoses or components.
• Hex Head Size: Comes with a 9/16 in Hex Head that denotes the wrench or socket size required to tighten or loosen the fitting.
• Thread Size: Features a 1/4"-18 thread measurement for precise attachment to the relevant components.
• Thread Type: Uses an (M)NPT or Male National Pipe Taper thread type, offering high-pressure tight sealing.
• Gender Specification: The hose fitting presents a Male-Male gender specification, designating its compatibility with female connectors.
• Reusability: Can be detached and re-attached based on its design specification.
